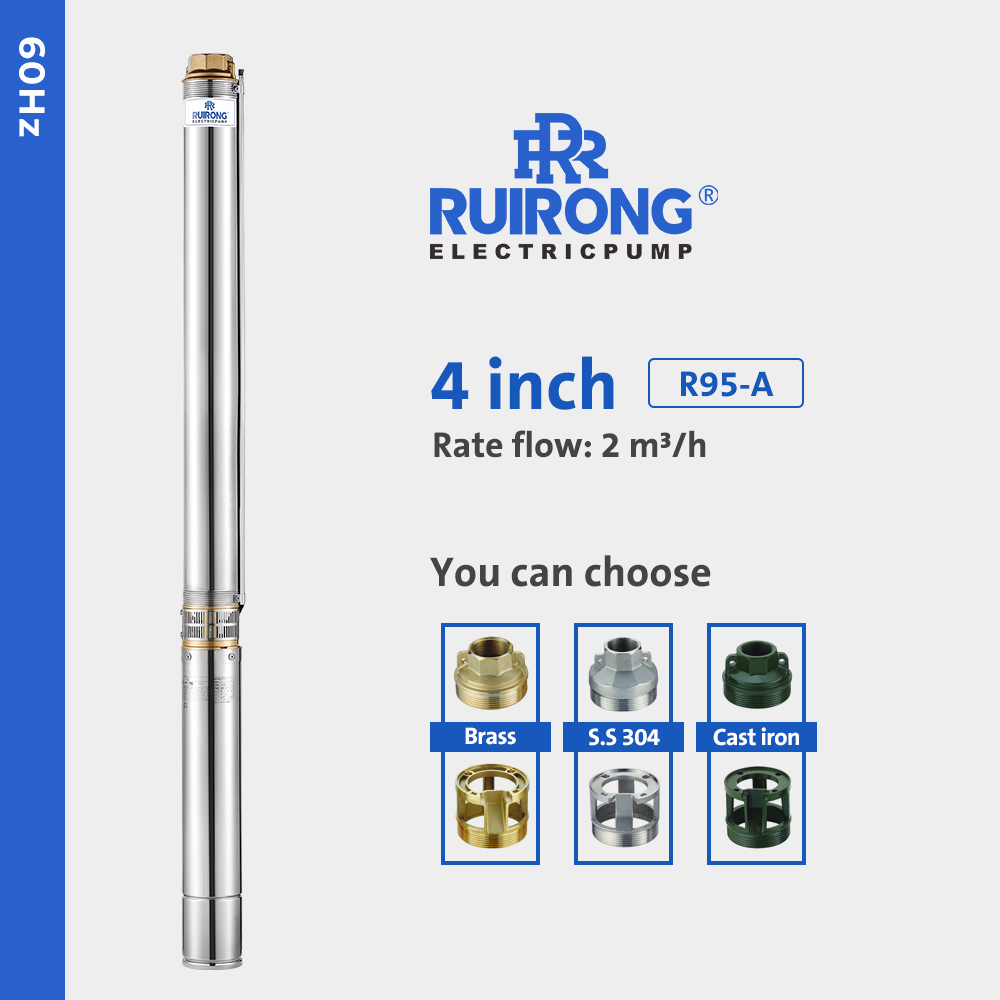

R95-A
RUIRONG
1. Upgrade to a stainless steel 304 pump pipe for its attractive appearance and excellent corrosion resistance.
2. Benefit from a POM impeller and PPO diffuser, designed for high temperature resistance, superior corrosion resistance, enhanced mechanical strength, and extended longevity.
3. The multi-stage floating impeller design significantly lowers starting torque requirements and boasts strong sand resistance, contributing to a longer motor lifespan.
4. Choose from various pump head materials, including copper alloy, stainless steel 304 or 316, and rust-resistant cast iron, to suit your specific needs.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 3.5 | 7 | 10.6 | 14.1 | 17.6 | 21.1 | 22 | |||||||
| m3/h | 0 | 0.8 | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 5 | |||||||
| 380V | 220V | L/min | 0 | 13.3 | 26.7 | 40 | 43.3 | 66.7 | 80 | 83.3 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-A-04 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | H (m) | 48 | 47 | 45 | 41 | 35 | 26 | 15 | 12 |
| R95-A-05 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 60 | 60 | 57 | 51.5 | 43 | 33 | 20 | 15 | |
| R95-A-07 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 84.5 | 83 | 79 | 72 | 61 | 45 | 26 | 21 | |
| R95-A-10 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 120.5 | 118 | 113 | 103 | 87 | 65 | 39 | 32 | |
| R95-A-12 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 144 | 143 | 137 | 123 | 104 | 77 | 45 | 38 | |
| R95-A-16 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 193 | 191 | 180 | 165 | 137 | 104 | 60 | 50 | |
| R95-A-17 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 200 | 195 | 188 | 173 | 151 | 122 | 65 | 53 | |
| R95-A-22 | 4 | 3 | 6.7 | - | - | - | 254 | 251 | 240 | 215 | 180 | 133 | 75 | 55 | |
| R95-A-23 | 4 | 3 | 8.6 | - | - | - | 271 | 264 | 255 | 234 | 204 | 165 | 80 | 58 | |
| R95-A-27 | 5 | 3.7 | - | 22.5 | 80 | 450 | 315 | 311 | 297 | 267 | 222 | 166 | 95 | 76 | |
| R95-A-30 | 5.5 | 4 | 11.2 | - | - | - | 345 | 341 | 325 | 293 | 244 | 180 | 102 | 80 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-A-04 | 710 | 367 | 343 | G1 1/4" | 95 | 100 | |
| R95-A-05 | 734 | 367 | 367 | ||||
| R95-A-07 | 808 | 387 | 421 | ||||
| R95-A-10 | 905 | 407 | 498 | ||||
| R95-A-12 | 993 | 442 | 551 | ||||
| R95-A-16 | 1157 | 502 | 655 | ||||
| R95-A-17 | 1182 | 502 | 681 | ||||
| R95-A-22 | 1373 | 562 | 811 | ||||
| R95-A-23 | 1399 | 562 | 837 | ||||
| R95-A-27 | 1589 | 602 | 987 | ||||
| R95-A-30 | 1667 | 602 | 1065 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
