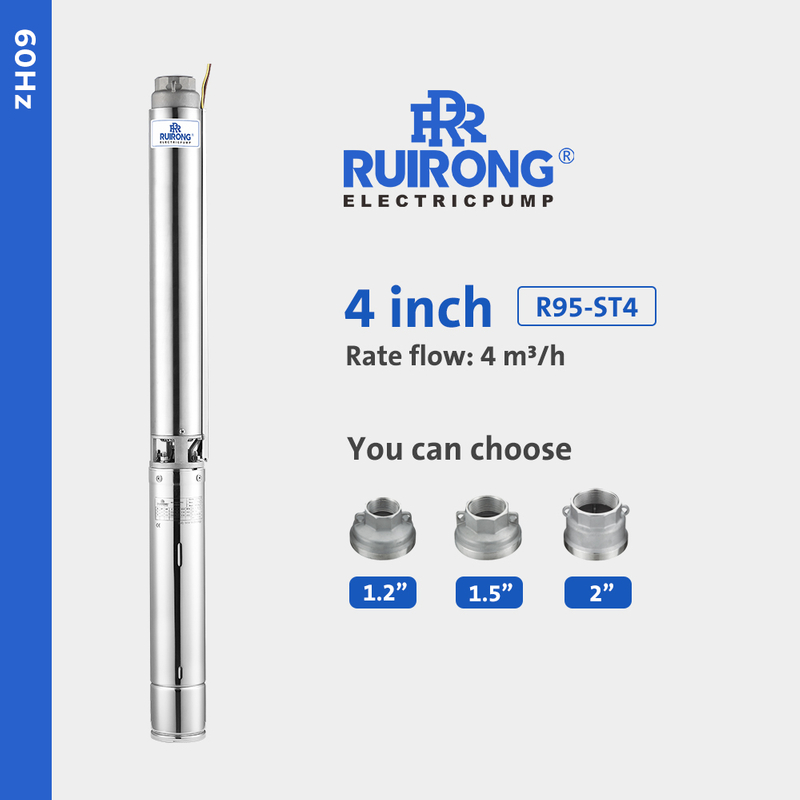

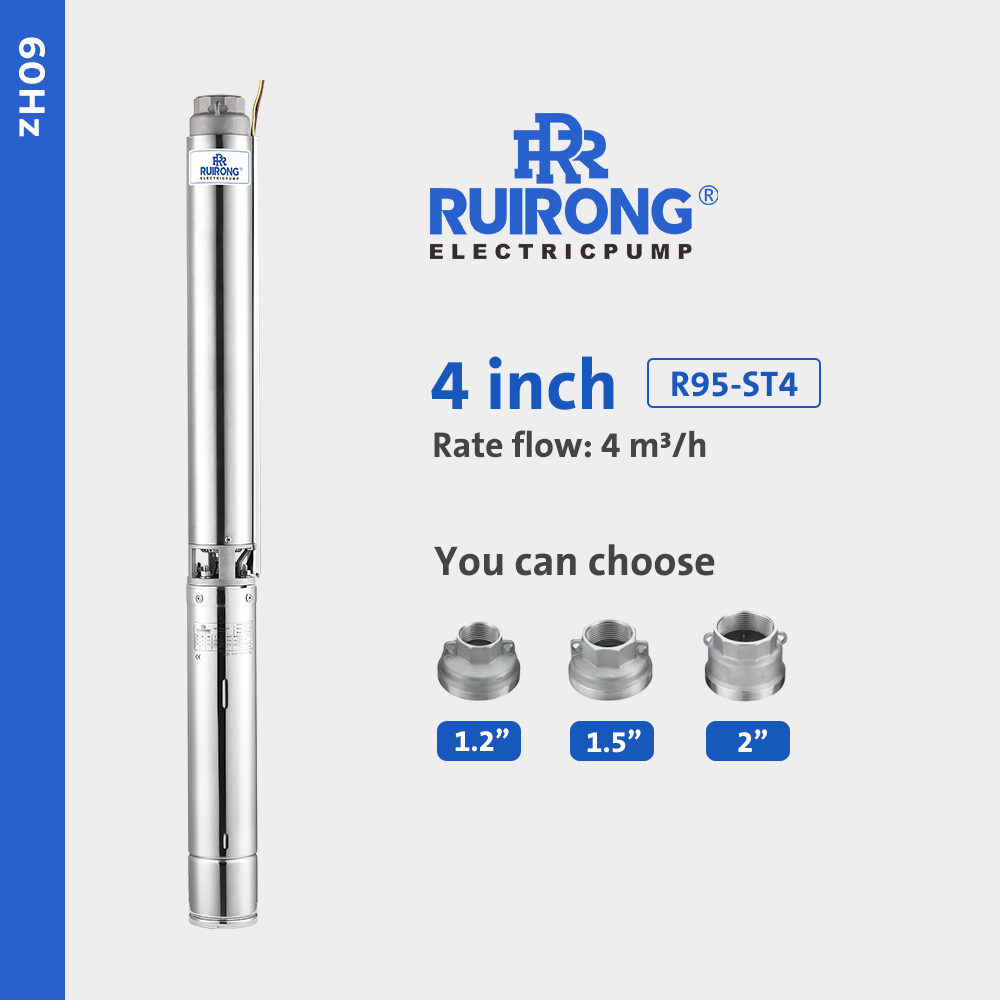

R95-ST4
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 9.2 | 13.2 | 15.8 | 18.5 | 21.1 | 23.8 | 29 | |||||||
| m3/h | 0 | 2.1 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6.6 | |||||||
| 380V | 220V | L/min | 0 | 35 | 50 | 60 | 70 | 80 | 90 | 110 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST4-03 | 0.5 | 0.37 | 1.2 | 3.4 | 20 | 450 | H (m) | 28 | 26 | 24 | 22 | 20 | 17 | 14 | 7 |
| *R95-ST4-04 | 0.75 | 0.55 | 1.7 | 4.2 | 25 | 450 | 37 | 34 | 32 | 29 | 26 | 23 | 18 | 9 | |
| R95-ST4-05 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | 45 | 41 | 38 | 35 | 31 | 27 | 21 | 9 | |
| *R95-ST4-05 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | |||||||||
| R95-ST4-06 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 56 | 53 | 49 | 45 | 41 | 37 | 30 | 16 | |
| R95-ST4-08 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 75 | 70 | 65 | 61 | 55 | 49 | 41 | 32 | |
| *R95-ST4-08 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | |||||||||
| *R95-ST4-10 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | 94 | 87 | 82 | 76 | 69 | 62 | 52 | 29 | |
| R95-ST4-11 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 104 | 96 | 90 | 84 | 77 | 68 | 58 | 33 | |
| R95-ST4-14 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 132 | 123 | 115 | 108 | 99 | 88 | 75 | 45 | |
| *R95-ST4-14 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | |||||||||
| R95-ST4-19 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 178 | 164 | 153 | 143 | 131 | 117 | 100 | 61 | |
| *R95-ST4-20 | 4 | 3 | 6.7 | - | - | - | 189 | 176 | 162 | 152 | 138 | 125 | 107 | 65 | |
| R95-ST4-25 | 4 | 3 | 8.6 | - | - | - | 238 | 217 | 204 | 192 | 176 | 158 | 136 | 81 | |
| *R95-ST4-26 | 5 | 3.7 | - | 22.5 | 80 | 450 | 246 | 226 | 211 | 199 | 183 | 164 | 142 | 86 | |
| R95-ST4-30 | 5 | 37 | - | 27.4 | 80 | 450 | 283 | 260 | 242 | 228 | 210 | 189 | 164 | 102 | |
| *R95-ST4-30 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
Mark * indicates that the pump body load is configured according to the rated power.
