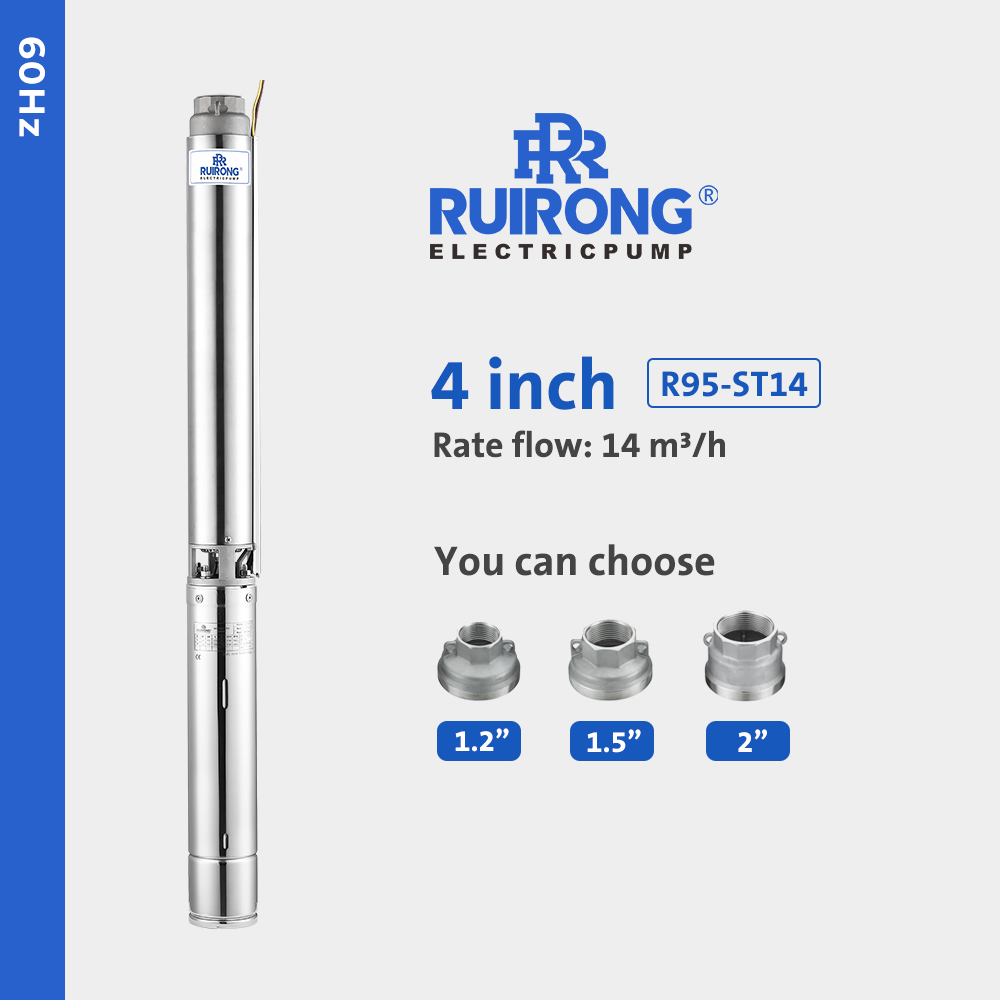

R95-ST14
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 26 | 37 | 48 | 58 | 69 | 79 | 90 | |||||||
| m3/h | 0 | 6 | 8.4 | 10.8 | 13.2 | 15.6 | 18 | 20.4 | |||||||
| 380V | 220V | L/min | 0 | 100 | 140 | 180 | 220 | 260 | 300 | 340 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST14-03 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | H (m) | 27 | 24 | 22 | 20 | 17 | 13 | 10 | 5 |
| R95-ST14-04 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 36 | 32 | 30 | 26 | 22 | 17 | 12 | 6 | |
| *R95-ST14-04 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | |||||||||
| R95-ST14-05 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 46 | 41 | 37 | 34 | 29 | 23 | 17 | 9 | |
| *R95-ST14-06 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 55 | 49 | 45 | 41 | 35 | 28 | 21 | 12 | |
| R95-ST14-07 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 64 | 57 | 53 | 48 | 42 | 34 | 25 | 15 | |
| *R95-ST14-08 | 4 | 3 | 6.7 | - | - | - | 73 | 65 | 60 | 54 | 47 | 38 | 29 | 17 | |
| R95-ST14-09 | 4 | 3 | 8.6 | - | - | - | 82 | 72 | 67 | 60 | 52 | 42 | 32 | 18 | |
| *R95-ST14-10 | 5 | 3.7 | - | 22.5 | 80 | 450 | 91 | 81 | 75 | 67 | 59 | 48 | 36 | 21 | |
| R95-ST14-11 | 5 | 3.7 | - | 27.4 | 80 | 450 | 100 | 90 | 83 | 75 | 67 | 54 | 41 | 24 | |
| *R95-ST14-11 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
| R95-ST14-12 | 5.5 | 4 | 11.2 | - | - | - | 110 | 98 | 92 | 84 | 73 | 60 | 44 | 26 | |
| *R95-ST14-15 | 7.5 | 5.5 | 11.9 | - | - | - | 138 | 123 | 115 | 105 | 92 | 75 | 54 | 32 | |
| R95-ST14-17 | 7.5 | 5.5 | 15 | - | - | - | 157 | 140 | 131 | 119 | 104 | 85 | 61 | 35 | |
| *R95-ST14-21 | 10 | 7.5 | 15.8 | - | - | - | 194 | 173 | 162 | 147 | 128 | 105 | 75 | 43 | |
| R95-ST14-23 | 10 | 7.5 | 19.9 | - | - | - | 212 | 189 | 177 | 161 | 140 | 115 | 82 | 47 | |
Mark * indicates that the pump body load is configured according to the rated power.
