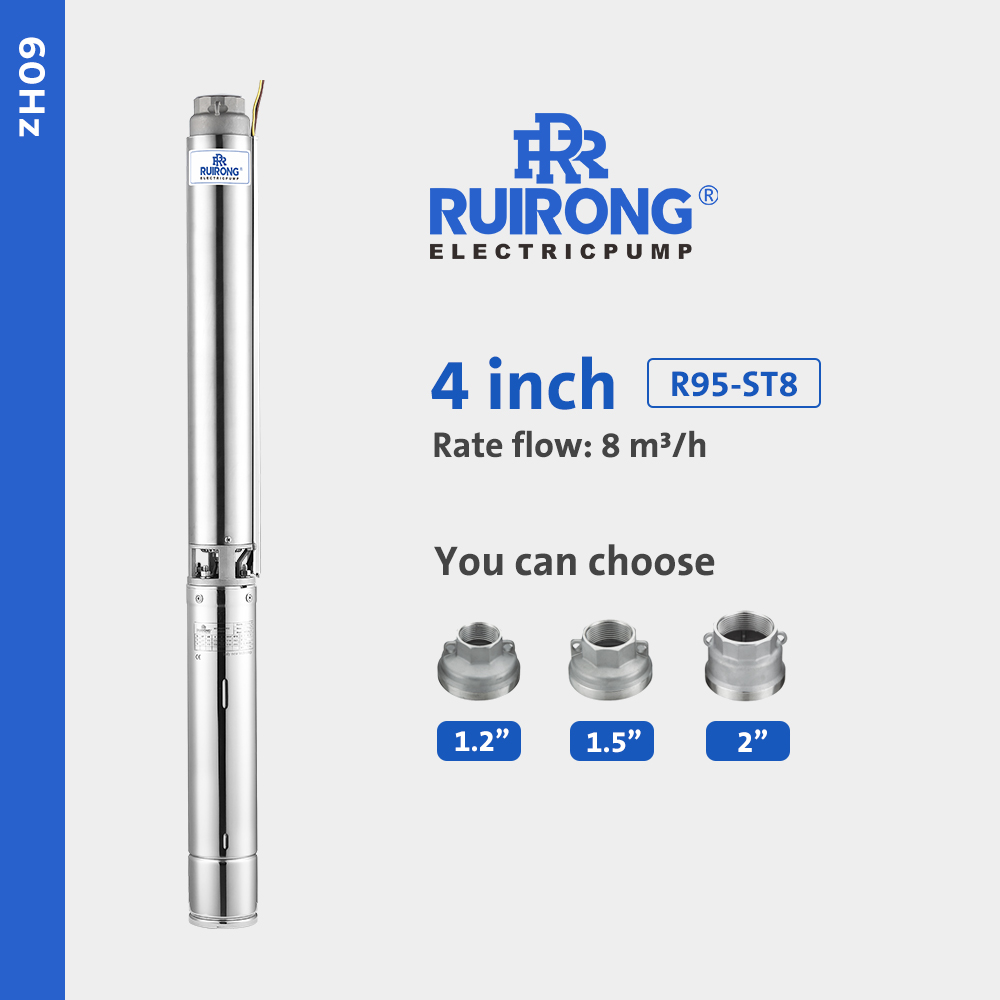

R95-ST8
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 15.8 | 21.1 | 26.4 | 31.7 | 37 | 42.2 | 47.5 | |||||||
| m3/h | 0 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | |||||||
| 380V | 220V | L/min | 0 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST8-04 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | H (m) | 35 | 29 | 28 | 25 | 22 | 18 | 12 | 6 |
| R95-ST8-06 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 52 | 44 | 42 | 38 | 33 | 27 | 18 | 9 | |
| *R95-ST8-06 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | |||||||||
| R95-ST8-08 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 70 | 60 | 55 | 50 | 43 | 35 | 24 | 12 | |
| *R95-ST8-08 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | |||||||||
| R95-ST8-10 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 91 | 77 | 72 | 65 | 58 | 48 | 32 | 17 | |
| *R95-ST8-12 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 109 | 93 | 87 | 79 | 70 | 59 | 41 | 23 | |
| R95-ST8-14 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 128 | 109 | 102 | 94 | 83 | 70 | 51 | 29 | |
| *R95-ST8-16 | 4 | 3 | 6.7 | - | - | - | 144 | 124 | 116 | 106 | 94 | 80 | 59 | 34 | |
| R95-ST8-18 | 4 | 3 | 8.6 | - | - | - | 160 | 139 | 129 | 117 | 104 | 89 | 67 | 40 | |
| *R95-ST8-20 | 5 | 3.7 | - | 22.5 | 80 | 450 | 180 | 154 | 144 | 132 | 118 | 100 | 75 | 45 | |
| R95-ST8-22 | 5 | 3.7 | - | 27.4 | 80 | 450 | 200 | 170 | 159 | 147 | 132 | 111 | 84 | 50 | |
| *R95-ST8-22 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
| R95-ST8-23 | 5.5 | 4 | 9.9 | - | - | - | 211 | 181 | 170 | 155 | 142 | 120 | 91 | 53 | |
| R95-ST8-24 | 5.5 | 4 | 11.2 | - | - | - | 220 | 189 | 177 | 162 | 148 | 125 | 95 | 55 | |
| *R95-ST8-30 | 7.5 | 5.5 | 11.9 | - | - | - | 273 | 234 | 219 | 201 | 181 | 152 | 113 | 65 | |
| R95-ST8-34 | 7.5 | 5.5 | 15 | - | - | - | 308 | 263 | 246 | 225 | 200 | 167 | 122 | 69 | |
| *R95-ST8-40 | 10 | 7.5 | 15.8 | - | - | - | 364 | 312 | 292 | 268 | 239 | 201 | 149 | 82 | |
| R95-ST8-43 | 10 | 7.5 | 19.9 | - | - | - | 394 | 339 | 317 | 292 | 261 | 220 | 167 | 90 | |
Mark * indicates that the pump body load is configured according to the rated power.
