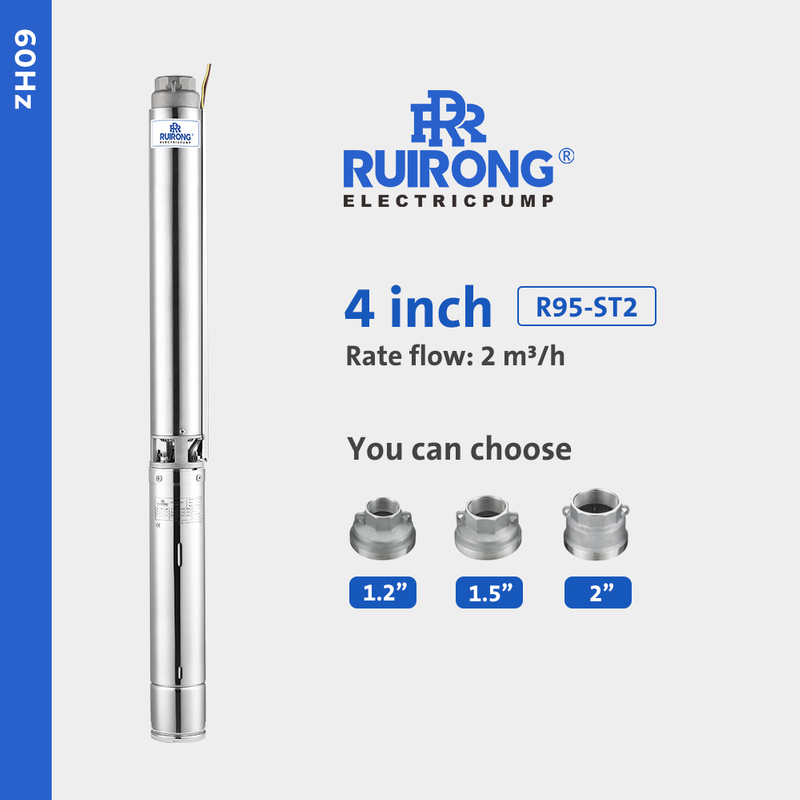

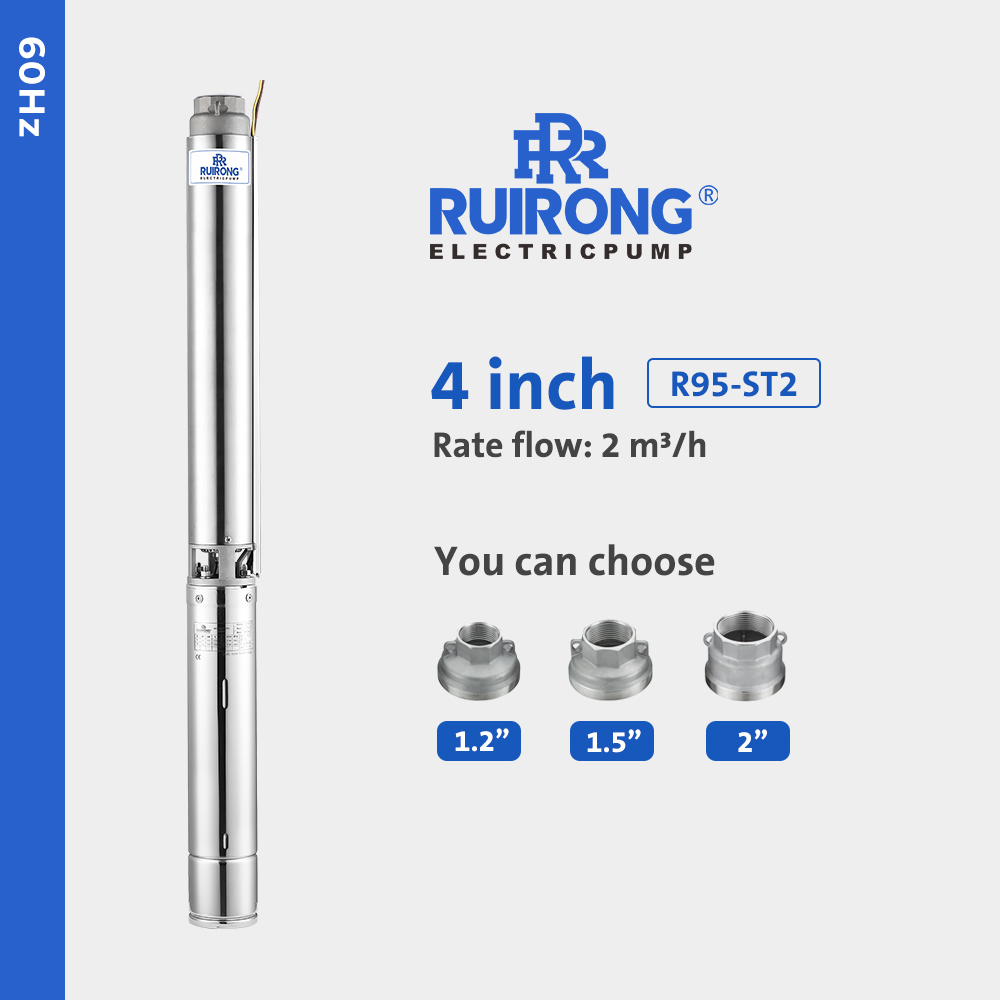

R95-ST2
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 5.3 | 7.9 | 9.2 | 10.6 | 13.2 | 15.9 | 18.5 | |||||||
| m3/h | 0 | 1.2 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.2 | |||||||
| 380V | 220V | L/min | 0 | 20 | 30 | 35 | 40 | 50 | 60 | 70 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST2-04 | 0.5 | 0.37 | 1.2 | 3.4 | 20 | 450 | H (m) | 38 | 35 | 32 | 30 | 28 | 23 | 15 | 7 |
| R95-ST2-05 | 0.5 | 0.37 | 1.7 | 4.8 | 20 | 450 | 48 | 44 | 40 | 38 | 36 | 29 | 19 | 9 | |
| *R95-ST2-06 | 0.75 | 0.55 | 1.7 | 4.2 | 25 | 450 | 58 | 52 | 48 | 45 | 43 | 34 | 23 | 11 | |
| R95-ST2-07 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | 67 | 60 | 55 | 52 | 49 | 39 | 27 | 13 | |
| R95-ST2-08 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | 77 | 70 | 64 | 61 | 56 | 45 | 31 | 15 | |
| R95-ST2-10 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 96 | 89 | 81 | 77 | 71 | 58 | 40 | 19 | |
| *R95-ST2-11 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | 106 | 98 | 89 | 85 | 78 | 63 | 44 | 21 | |
| R95-ST2-12 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 115 | 106 | 98 | 92 | 85 | 68 | 47 | 23 | |
| *R95-ST2-15 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | 146 | 136 | 126 | 118 | 110 | 88 | 60 | 30 | |
| R95-ST2-17 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 168 | 159 | 147 | 138 | 128 | 102 | 70 | 38 | |
| R95-ST2-20 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 195 | 181 | 168 | 158 | 146 | 118 | 82 | 40 | |
| *R95-ST2-21 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 207 | 194 | 180 | 209 | 158 | 127 | 86 | 42 | |
| R95-ST2-27 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 270 | 255 | 237 | 223 | 209 | 167 | 111 | 53 | |
| *R95-ST2-29 | 4 | 3 | 6.7 | - | - | - | 290 | 273 | 254 | 239 | 223 | 179 | 122 | 58 | |
| R95-ST2-34 | 4 | 3 | 8.6 | - | - | - | 339 | 320 | 296 | 280 | 259 | 209 | 146 | 70 | |
| *R95-ST2-37 | 5 | 3.7 | - | 22.5 | 80 | 450 | 366 | 345 | 319 | 301 | 280 | 227 | 161 | 80 | |
| R95-ST2-42 | 5 | 3.7 | - | 27.4 | 80 | 450 | 412 | 389 | 358 | 338 | 315 | 258 | 186 | 95 | |
| *R95-ST2-42 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
Mark * indicates that the pump body load is configured according to the rated power.
