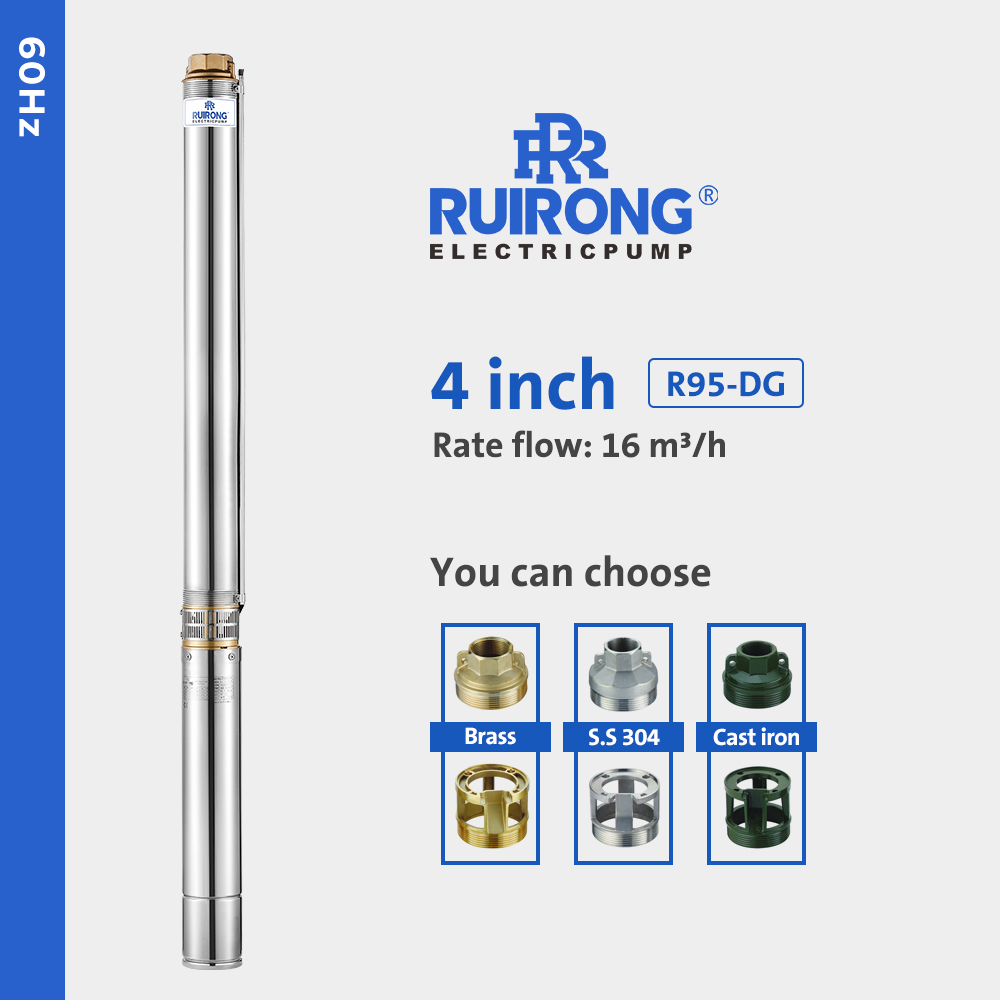

R95-DG
RUIRONG
1. Upgrade to a stainless steel 304 pump pipe for its attractive appearance and excellent corrosion resistance.
2. Benefit from a POM impeller and PPO diffuser, designed for high temperature resistance, superior corrosion resistance, enhanced mechanical strength, and extended longevity.
3. The multi-stage floating impeller design significantly lowers starting torque requirements and boasts strong sand resistance, contributing to a longer motor lifespan.
4. Choose from various pump head materials, including copper alloy, stainless steel 304 or 316, and rust-resistant cast iron, to suit your specific needs.
Model 60Hz | Motor Power | Three Phase | Single Phase | Q | Capacity | ||||||||||
| US.gpm | 0 | 26 | 53 | 66 | 79 | 92 | 106 | 119 | |||||||
| m3/h | 0 | 6 | 12 | 15 | 18 | 21 | 24 | 27 | |||||||
| 380V | 220V | L/min | 0 | 100 | 200 | 250 | 300 | 350 | 400 | 450 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| R95-DG-02 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | H (m) | 16 | 15 | 13 | 11.5 | 10.5 | 9.5 | 8 | 7 |
| R95-DG-03 | 2 | 1.5 | 5 | 12.6 | 40 | 450 | 24 | 23 | 20 | 18 | 16 | 14 | 13 | 11 | |
| R95-DG-04 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 32 | 31 | 26 | 24 | 21 | 19 | 17 | 14 | |
| R95-DG-06 | 4 | 3 | 8.6 | - | - | - | 47 | 46 | 39 | 35 | 32 | 29 | 26 | 22 | |
| R95-DG-07 | 5 | 3.7 | - | 27.4 | 80 | 450 | 55 | 54 | 45 | 41 | 37 | 34 | 30 | 25 | |
| R95-DG-08 | 5.5 | 4 | 11.2 | - | - | - | 63 | 62 | 52 | 47 | 43 | 38 | 34 | 29 | |
| R95-DG-10 | 7.5 | 5.5 | 11.9 | - | - | - | 79 | 77 | 65 | 59 | 53 | 48 | 43 | 36 | |
| R95-DG-11 | 7.5 | 5.5 | 15 | - | - | - | 87 | 85 | 71 | 65 | 59 | 53 | 47 | 40 | |
| R95-DG-14 | 10 | 7.5 | 15.8 | - | - | - | 111 | 108 | 91 | 83 | 75 | 67 | 60 | 50 | |
| R95-DG-15 | 10 | 7.5 | 19.9 | - | - | - | 118 | 115 | 97 | 88 | 80 | 72 | 64 | 54 | |
 | (Unit of Length: mm) | ||||||
| Model | H3 | H2 | H1 | ΦA | ΦB | Φmax | |
| R95-DG-02 | 748 | 387 | 361 | G2" | 95 | 100 | |
| R95-DG-03 | 872 | 442 | 430 | ||||
| R95-DG-04 | 995 | 502 | 493 | ||||
| R95-DG-06 | 1199 | 562 | 637 | ||||
| R95-DG-07 | 1308 | 602 | 706 | ||||
| R95-DG-08 | 1376 | 602 | 774 | ||||
| R95-DG-10 | 1632 | 722 | 910 | ||||
| R95-DG-11 | 1702 | 722 | 980 | ||||
| R95-DG-14 | 2067 | 842 | 1225 | ||||
| R95-DG-15 | 2136 | 842 | 1295 | ||||
| Parts | Material | ||||||
| Delivery door | Cast iron | ||||||
| Suction support | Cast iron | ||||||
| Check value | Plastic(POM) | ||||||
| Valve support | Plastic(PPO/PC) | ||||||
| Shaft support | Plastic(PPO/PC) | ||||||
| Impeller | Plastic(PPO) | ||||||
| Diffuser | Plastic(POM) | ||||||
| Valve seal | Nitrile rubber(NBR) | ||||||
| Anti-wear washer | Nitrile rubber(NBR) | ||||||
| Pump bearing | Nitrile rubber(NBR) | ||||||
| Pump body | AISI 304 | ||||||
| Cable cover | AISI 304 | ||||||
| Filter | AISI 304 | ||||||
| Shaft | 2Cr13 | ||||||
| Shaft coupling | AISI 304 | ||||||
| Bushing | AISI 304 | ||||||
