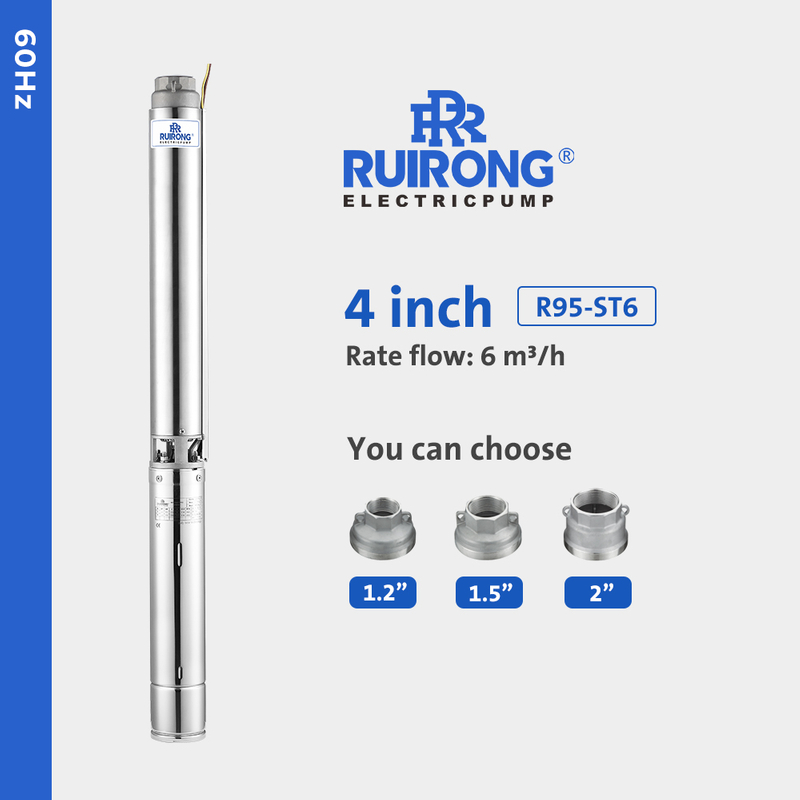

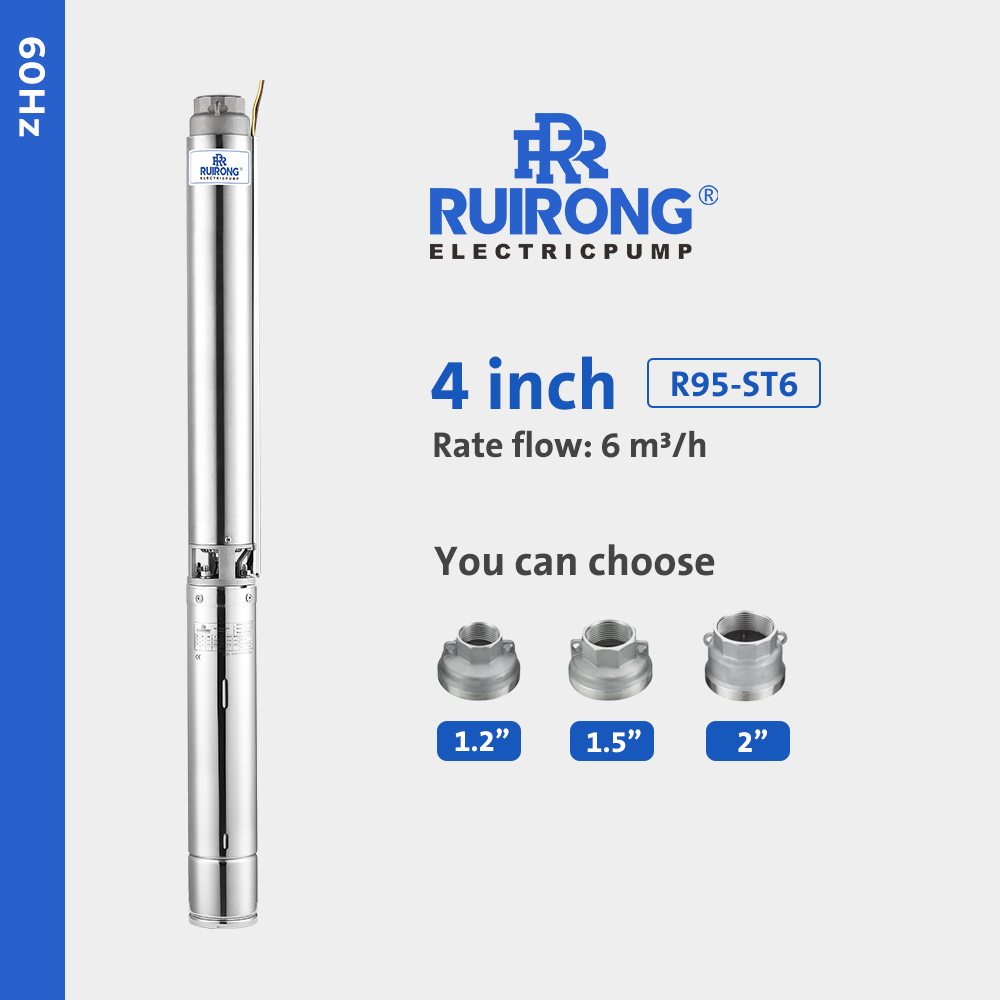

R95-ST6
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 13 | 16 | 19 | 21 | 24 | 26 | 32 | |||||||
| m3/h | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 72 | |||||||
| 380V | 220V | L/min | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST6-03 | 0.5 | 0.37 | 1.2 | 3.4 | 20 | 450 | H (m) | 27 | 25 | 24 | 22 | 21 | 18 | 16 | 10 |
| R95-ST6-04 | 0.5 | 0.37 | 2.2 | 5.5 | 20 | 450 | 36 | 33 | 31 | 29 | 27 | 23 | 20 | 12 | |
| *R95-ST6-04 | 0.75 | 0.55 | 1.7 | 4.2 | 25 | 450 | |||||||||
| R95-ST6-05 | 0.75 | 0.55 | 2.6 | 6.5 | 25 | 450 | 46 | 42 | 40 | 38 | 35 | 32 | 28 | 19 | |
| *R95-ST6-05 | 1 | 0.75 | 2.1 | 5.4 | 30 | 450 | |||||||||
| R95-ST6-07 | 1 | 0.75 | 3 | 7.9 | 30 | 450 | 63 | 58 | 55 | 52 | 48 | 43 | 37 | 25 | |
| *R95-ST6-07 | 1.5 | 1.1 | 2.8 | 7.2 | 40 | 450 | |||||||||
| R95-ST6-09 | 1.5 | 1.1 | 3.9 | 10.1 | 40 | 450 | 82 | 76 | 73 | 69 | 64 | 58 | 52 | 35 | |
| *R95-ST6-09 | 2 | 1.5 | 3.7 | 9.6 | 50 | 450 | |||||||||
| R95-ST6-11 | 2 | 1.5 | 5 | 12.6 | 50 | 450 | 100 | 92 | 88 | 84 | 78 | 71 | 64 | 45 | |
| *R95-ST6-13 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | 118 | 109 | 104 | 99 | 92 | 85 | 77 | 56 | |
| R95-ST6-15 | 3 | 2.2 | 6.6 | 16.8 | 60 | 450 | 136 | 125 | 121 | 115 | 107 | 100 | 90 | 69 | |
| *R95-ST6-18 | 4 | 3 | 6.7 | - | - | - | 164 | 152 | 147 | 140 | 131 | 122 | 109 | 83 | |
| R95-ST6-20 | 4 | 3 | 8.6 | - | - | - | 183 | 172 | 166 | 158 | 148 | 137 | 122 | 92 | |
| *R95-ST6-23 | 5 | 3.7 | - | 22.5 | 80 | 450 | 209 | 194 | 187 | 178 | 166 | 154 | 137 | 102 | |
| R95-ST6-26 | 5 | 3.7 | - | 27.4 | 80 | 450 | 234 | 214 | 206 | 196 | 183 | 169 | 152 | 112 | |
| *R95-ST6-26 | 5.5 | 4 | 8.6 | - | - | - | |||||||||
Mark * indicates that the pump body load is configured according to the rated power.
