Access to clean, reliable water is essential for everything from agriculture to daily living. But in remote areas or places with unreliable electricity, powering a traditional water pump can be a major challenge. This is where solar energy comes in, offering a sustainable and increasingly affordable solution. The solar pump is a remarkable piece of technology that harnesses the sun's power to move water, unlocking new possibilities for farming, livestock, and communities.
If you've ever wondered about the mechanics behind this eco-friendly innovation, you've come to the right place. This guide will break down exactly how a solar pump works, exploring its core components and the process that turns sunlight into a steady flow of water. We'll look at the different types of solar pumps available and discuss their real-world applications. By the end, you'll have a clear understanding of this game-changing technology.
At its core, a solar pump system uses the energy from sunlight to power a pump that moves water from a source—like a well, river, or pond—to where it's needed. Unlike conventional pumps that rely on grid electricity or diesel generators, solar-powered pumps operate entirely on renewable energy.
This simple concept has profound implications. It means you can have a dependable water supply in areas completely off the grid, without the ongoing costs of fuel or the environmental impact of fossil fuels.
A solar pump system isn't just one device; it's a combination of several key components working together. Understanding each part is crucial to understanding the entire process.
The journey begins with the solar panels. These panels are the system's power source, made up of many photovoltaic (PV) cells. When sunlight hits these cells, a physical and chemical reaction known as the photovoltaic effect occurs.
· How it works: The PV cells, typically made of silicon, absorb photons from sunlight. This energy excites electrons within the cells, causing them to flow and create a direct current (DC) of electricity.
· The Array: Multiple solar panels are connected to form a solar array. The size and number of panels needed depend on the pump's power requirements, the amount of sunlight the location receives, and how much water needs to be pumped.
The electricity generated by the solar panels is sent to the motor, which is the heart of the pump unit. The motor converts this electrical energy into mechanical energy, which then drives the pump.
· DC vs. AC Motors: Most solar pumps use a DC motor because solar panels naturally produce DC electricity. This is a highly efficient setup as it minimizes energy loss. Some larger systems might use an AC motor, which requires an inverter to convert the DC electricity from the panels into AC electricity.
· The Pump: The pump itself is the mechanical device that moves the water. There are two main types used in solar systems: submersible and surface pumps. We'll explore these in more detail later.
The controller is the brain of the system. It's a small but vital electronic device that sits between the solar panels and the pump motor. Its main job is to manage the power and protect the system.
· Power Optimization: A key function of the controller is Maximum Power Point Tracking (MPPT). The amount of power from solar panels fluctuates with the intensity of sunlight. MPPT technology constantly adjusts the electrical load to ensure the pump motor receives the optimal voltage and current, maximizing the amount of water pumped throughout the day.
· System Protection: The controller also acts as a safeguard. It protects the pump from running dry (which can cause serious damage) by using sensors to detect low water levels. It also provides protection against voltage surges or low voltage, ensuring the motor operates safely and has a longer lifespan.

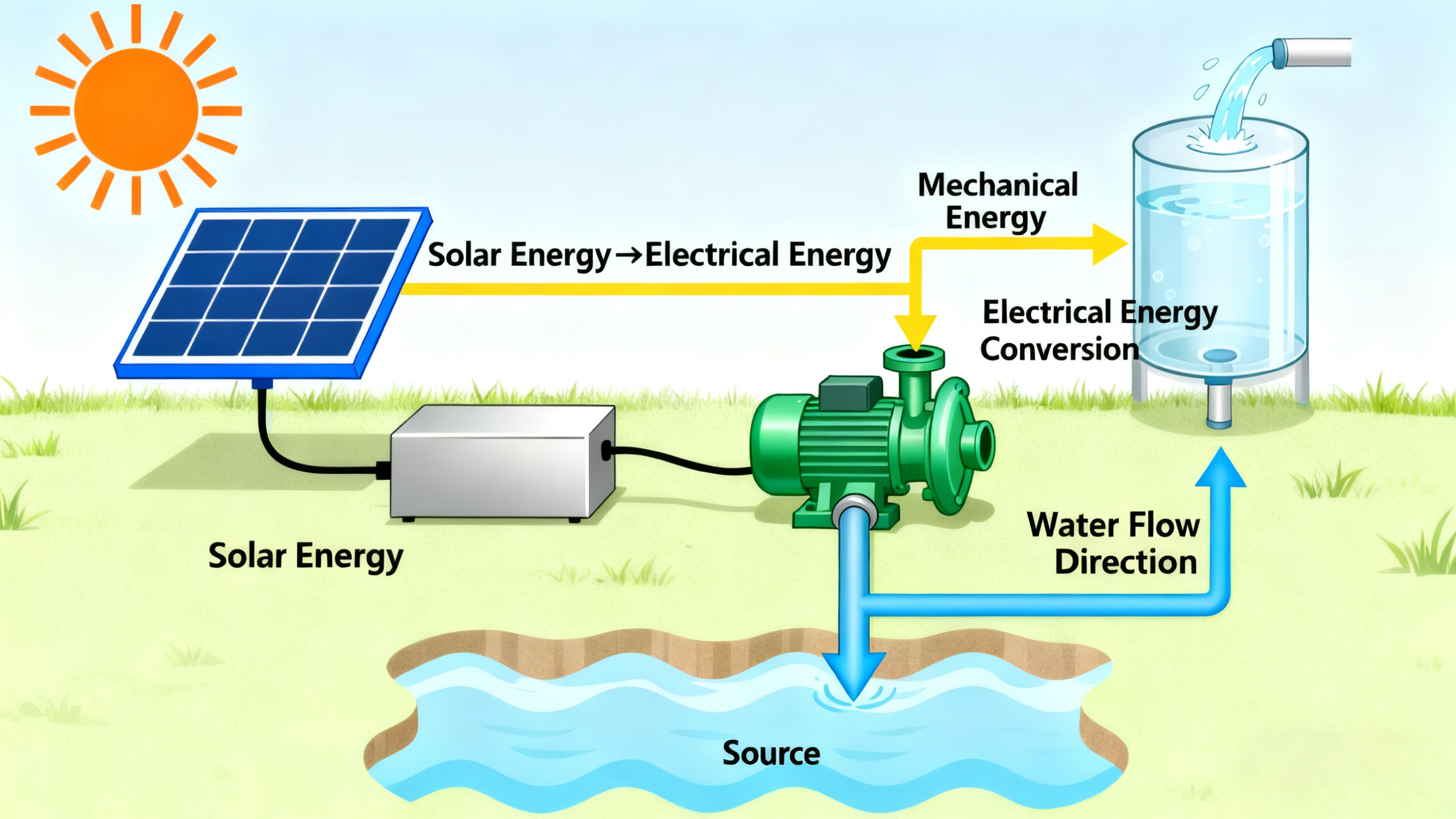

Now that we know the components, let's walk through the process of how a solar pump works on a typical sunny day.
1.Sunlight Hits the Panels: The sun rises, and its rays fall upon the solar array. The photovoltaic cells immediately start converting this light energy into DC electricity.
2.Electricity Flows to the Controller: The generated DC power travels through wiring to the solar pump controller.
3.Controller Optimizes Power: The controller's MPPT circuit analyzes the power coming from the panels and adjusts it to the ideal voltage and current for the pump's motor.
4.Motor Powers the Pump: The conditioned electricity flows to the motor, which springs to life. The motor's shaft begins to rotate, providing the mechanical power needed to operate the pump.
5.Water is Pumped: The pump—whether it's deep in a well or on the edge of a pond—starts drawing in water and pushing it through pipes to its destination. This could be a storage tank, an irrigation system, or a water trough for livestock.
6.Continuous Operation: As long as there is sufficient sunlight, this process continues, providing a consistent flow of water. The pump's speed will vary with the sun's intensity—pumping more water at midday and less in the early morning or late afternoon.
Solar pumps are not one-size-fits-all. The right type depends on the water source and the specific application.
As the name suggests, submersible pumps are designed to be placed underwater. They are typically used for deep wells, boreholes, or other sources where the water level is far below the surface.
· How they work: The entire unit, including the pump and motor, is submerged. Water is pushed up to the surface through a pipe.
· Best for: Deep well water extraction, irrigation for farms with underground water sources, and supplying water to remote homes.
Surface pumps are positioned out of the water, on the ground near the water source. They work by pulling water from the source through an intake pipe.
· How they work: These pumps are effective for moving large volumes of water over short distances. However, they are generally limited in their ability to lift water from significant depths.
· Best for: Pumping water from ponds, streams, rivers, and shallow wells. They are ideal for irrigation, managing ponds, and livestock watering.
Understanding how a solar pump works reveals a technology that is both simple and powerful. By combining the natural power of the sun with efficient engineering, these systems offer a sustainable, reliable, and cost-effective way to access water anywhere. As solar technology continues to improve and become more affordable, the solar pump will play an even more critical role in supporting agriculture, communities, and sustainable living around the world.
Whether you're a farmer looking to reduce irrigation costs, a homeowner seeking water independence, or simply curious about renewable energy, the solar pump represents a bright solution to one of our most fundamental needs.
