Managing water supply shouldn't require constant manual attention. Yet without the right equipment, pumps run dry, tanks overflow, and energy bills climb higher than they need to. That's exactly the problem an automatic water pump controller solves.
Whether you're managing a deep well, irrigation system, or residential water supply, a pump controller takes the guesswork out of the equation. It monitors conditions in real time and switches your pump on or off automatically—no human intervention required. This post breaks down exactly how these devices work, what types are available, and how to choose the right one for your setup.
A water pump controller is an electronic device that automates the operation of a water pump. Instead of manually switching a pump on and off, the controller does it for you based on preset conditions—such as water level, pressure, or flow rate.
At its core, a pump controller acts as the brain of the pumping system. It receives signals from sensors, processes that information, and triggers the pump to start or stop accordingly. Most modern controllers also include protection features that shut the pump down if something goes wrong—like a dry run, overload, or voltage fault.
These devices are used across a wide range of applications: residential tanks, agricultural irrigation, commercial buildings, and industrial water management systems.
The basic operating principle of an automatic pump controller involves three key stages: sensing, processing, and responding.
Sensors detect changes in the system—typically water level, pressure, or flow. Common sensor types include:
Float switches – Rise and fall with water levels to signal high or low thresholds
Pressure sensors – Monitor pipeline pressure and trigger the pump when pressure drops below a set point
Flow sensors – Detect whether water is actually moving through the system
The controller's onboard circuit processes the signals received from the sensors. It compares the current state of the system against the programmed parameters. If water in a tank drops below the minimum level, for example, the processor recognizes this and prepares to activate the pump.
Once the condition is met, the controller either starts or stops the pump. Some advanced controllers also adjust pump speed (via variable frequency drives) to match demand more efficiently, reducing wear and energy consumption.
Feature | Function |
|---|---|
Auto start/stop | Starts the pump when water is needed; stops it when the tank is full |
Dry-run protection | Shuts the pump off if no water is detected to prevent motor burnout |
Overload protection | Cuts power if the motor draws too much current |
Over/under voltage protection | Protects against power fluctuations that can damage the motor |
Phase failure protection | For three-phase systems, detects and responds to phase loss |
Delay restart | Adds a time buffer before restarting to protect the motor |
LCD/LED display | Shows real-time operating data and fault codes |
Not all pump controllers work the same way. The right type depends on your application, pump type, and system requirements.
Controller Type | Best For | How It Works |
|---|---|---|
Pressure switch controller | Household water systems | Activates pump when line pressure drops below threshold |
Float switch controller | Tanks and reservoirs | Uses floating sensors to detect water level |
Electronic level controller | Precise level management | Uses probes or ultrasonic sensors for accurate readings |

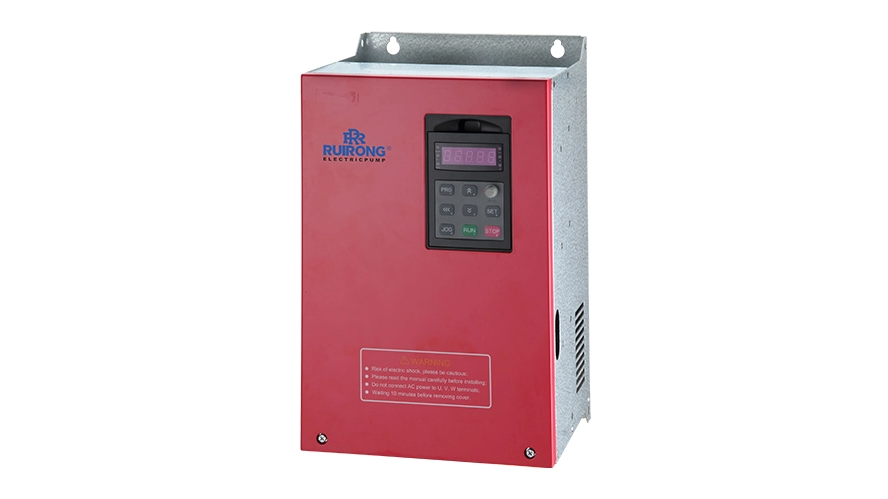

Solar pump controller | Off-grid solar systems | Converts DC power from panels to run AC or DC pumps |
Variable frequency drive (VFD) controller | Large-scale or energy-sensitive systems | Adjusts pump speed based on real-time demand |
A submersible pump controller operates on the same core principles, but it's specifically designed to work with pumps installed deep underground or underwater—such as borehole or deep well submersible pumps.
Because submersible pumps operate in environments where manual access is difficult, automatic protection features become especially important. A submersible pump controller typically monitors:
Water level – To prevent dry running, which can destroy the motor quickly
Motor temperature – To detect overheating before damage occurs
Current draw – To catch overloads or blocked impellers early
Insulation resistance – Some advanced models detect winding failures before they escalate
1
When paired with a quality submersible pump—like those manufactured by Ruirong Pump—a well-matched controller significantly extends motor life, improves system reliability, and reduces maintenance costs over time. Ruirong Pump, a Guangdong-based manufacturer with over 30 years of experience, produces submersible pumps and compatible controllers designed to work together across a range of applications.
Manual pump management isn't just inconvenient—it's inefficient. Here's what you gain by switching to an automatic system:
Energy savings – The pump only runs when needed, cutting unnecessary power consumption
Extended pump lifespan – Protection features prevent the most common causes of motor failure
Reduced labor costs – No need for someone to monitor the system manually
Consistent water pressure – Pressure-based systems maintain a steady supply regardless of demand fluctuations
Remote monitoring – Many modern controllers support remote alerts and diagnostics
1
Selecting a pump controller comes down to matching the device to your specific system. Here are the key factors to consider:
1. Pump type and power rating
Make sure the controller is rated for your pump's voltage, phase (single or three-phase), and power output in kilowatts or horsepower.
2. Application and environment
A residential tank system has different needs than an agricultural irrigation setup or a deep well application. Choose a controller built for your conditions.
3. Sensor compatibility
Confirm the controller works with the sensors already in your system—or factor in the cost of compatible sensors.
4. Protection features
At a minimum, look for dry-run, overload, and voltage protection. For submersible pumps, phase protection and delay restart are also worth prioritizing.
5. Ease of installation and configuration
Controllers with clear displays and straightforward wiring diagrams save time during setup and make troubleshooting easier down the line.
A pressure switch is a basic device that simply opens or closes a circuit based on pressure. A pump controller is more advanced—it monitors multiple parameters, offers protection features, and often includes diagnostic displays. Many controllers incorporate pressure sensing as one of several monitoring functions.
Most pump controllers are compatible with standard single-phase or three-phase motors within a specified power range. However, it's always best to confirm compatibility with the pump manufacturer. Some manufacturers, like Ruirong Pump, offer controllers designed to complement their own pump models.
When a submersible pump draws water but the source runs dry, the motor has nothing to cool it and can overheat quickly. A dry-run protection feature detects either a drop in current draw (since the pump isn't moving water) or a low water level signal from a sensor—and shuts the pump off automatically.
With proper installation and regular maintenance checks, a quality pump controller can last 10 years or more. Exposure to extreme temperatures, moisture ingress, and power surges are the most common causes of premature failure.
Yes. Solar pump controllers—sometimes called solar pump inverters—convert DC electricity from photovoltaic panels into the AC or DC power needed to run the pump. They also manage power fluctuations caused by changing sunlight levels, often incorporating maximum power point tracking (MPPT) to extract the most energy from the panels at any given time.
An automatic water pump controller is a practical investment that pays off quickly—through lower energy costs, fewer pump failures, and a system that simply works without constant supervision. The key is matching the controller to the pump, the application, and the environment.
For those working with submersible pumps in deep well or borehole applications, pairing a reliable pump with a purpose-built controller makes all the difference. Manufacturers like Ruirong Pump offer a comprehensive range of submersible pumps, motors, and compatible controllers, backed by over three decades of engineering experience. Explore their full product range or reach out to their technical team for guidance on selecting the right solution for your project.
