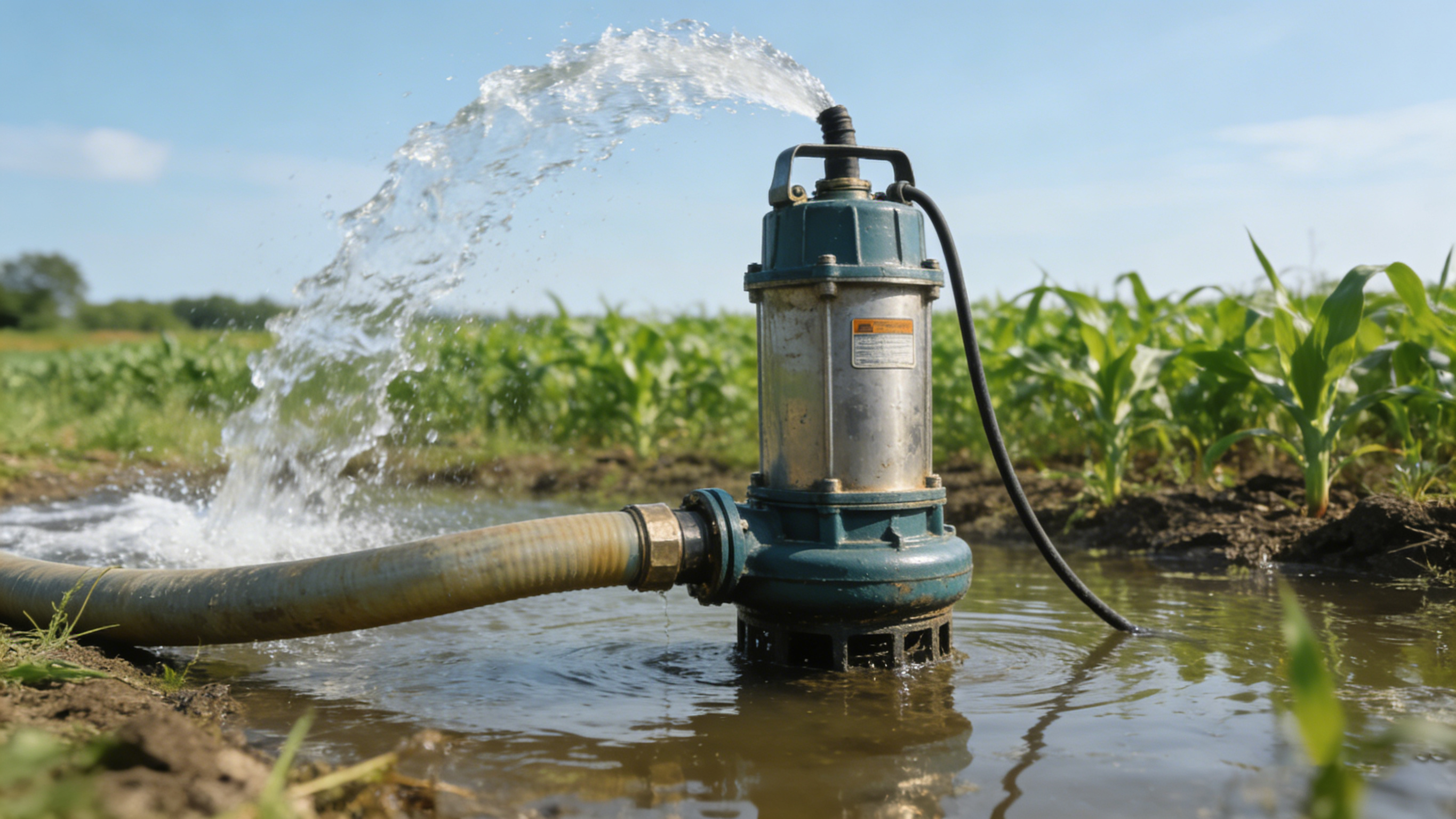

A submersible irrigation pump is a reliable and efficient way to draw water from a well, borehole, or tank for your garden, farm, or landscape. Unlike surface pumps, submersible pumps operate underwater, pushing water to the surface with less noise and greater energy efficiency. Proper installation is critical for performance, longevity, and safety. This comprehensive guide walks you through the entire process, from preparation to final testing.
Before lowering the pump, careful assembly is required. Start by unpacking the pump and motor. If they are separate units, they must be correctly coupled. Use the manufacturer-supplied grease or sealant on the coupling. Ensure the motor and pump shafts are perfectly aligned and rotate freely by hand—any resistance indicates misalignment, which can cause rapid failure.
Next, prepare the outlet. Wrap the pump’s discharge threads with high-quality Teflon tape to ensure a watertight seal. Screw on the necessary fitting—this could be a pitless adapter for a well installation or a barbed fitting for flexible polyethylene (poly) pipe. It’s often helpful to attach a short length of delivery pipe (2-3 feet) at this stage for easier handling.
Crucial Safety Step: Attach a sturdy, non-corrosive safety rope (stainless steel cable is ideal) to the pump’s lifting eye. This rope, not the electrical cable or the water pipe, will bear the entire weight of the pump during installation and future retrieval. Secure the submersible pump cable to the drop pipe (either rigid PVC or poly pipe) every 8-10 feet using UV-resistant cable ties or specially designed cable guard strips. This prevents the cable from rubbing against the well casing and getting damaged.
Slowly and carefully lower the assembled pump into the well or tank. Ensure the pump remains centered and does not snag on the casing. Keep feeding the pipe, cable, and safety rope simultaneously. Once the pump reaches the desired depth—fully submerged and well below the lowest expected water level—secure the safety rope to the well cap or a solid anchor at the surface.
At the surface, make your final connections:
Connect the drop pipe to your surface plumbing, which may include a check valve (to prevent backflow) and a pressure tank or irrigation mainline.
For poly pipe, use proper stainless-steel clamps on barbed fittings and avoid any sharp kinks in the line.
Connect the submersible pump cable to the main power supply according to local electrical codes. This always involves a waterproof splice kit or a properly sealed junction box. It is highly recommended to have this step completed by a licensed electrician.
1
Before finalizing, a critical test is required. Briefly turn on the power to check the pump’s rotation and immediate operation. The pump should start smoothly, with water flowing consistently after a brief purge of air. If water does not flow or the pump hums, immediately turn it off. The motor may be spinning backward due to incorrect phase connection (for 3-phase pumps) or wiring issues. Correct the wiring before proceeding. Once confirmed, let the pump run and check for leaks at all surface connections and monitor the system pressure.
The following table summarizes the key tools and materials you will need for a successful installation:
| Item | Purpose | Notes |
|---|---|---|
| Submersible Pump & Motor | The core unit. | Ensure it’s rated for your well diameter and required flow/pressure. |
| Safety Rope (Stainless Steel) | Supports pump weight. | Never use the electrical cable for support. |
| Drop Pipe (PVC or Poly) | Delivers water to surface. | Size must match pump outlet and system requirements. |
| Submersible Pump Cable | Powers the motor. | Must be the correct gauge and type for underwater use. |
| Cable Ties/Guards | Secures cable to pipe. | Prevents damage from chafing in the well. |
| Teflon Tape / Pipe Sealant | Seals threaded connections. | Ensures watertight joints. |
| Pitless Adapter or Fittings | Connects pump to plumbing. | Adapter allows pipe to exit well casing below frost line. |
| Wrenches, Pipe Cutters, etc. | General assembly. | For tightening fittings and cutting pipe to length. |
| Waterproof Splice Kit | Seals electrical connections. | Essential for safety and longevity. |
| Torque Arrestor | Prevents pump movement. | Recommended for deep well installations. |
Q: Can I install a submersible pump myself?
A: While a mechanically inclined homeowner can handle the mechanical assembly and lowering, the electrical connections should always be performed or verified by a licensed electrician. Local codes often require this for safety and compliance, especially for pumps installed in drinking water wells.
Q: How deep can I install my submersible irrigation pump?
A: Pump depth depends on the model and motor horsepower. Always follow the manufacturer’s specifications. The pump must be submerged well below the dynamic water level (the water level when the pump is running) to prevent dry running, which destroys the motor. It should also be placed above the bottom of the well to avoid drawing in sediment.
Q: Why is a safety rope so important?
A: The safety rope is your fail-safe for retrieving the pump. Poly pipe can stretch and degrade, and electrical cables are not designed for weight-bearing. If the pipe connection fails, the safety rope prevents the pump from being lost at the bottom of the well, saving you a very costly and difficult recovery operation.
Q: How do I prevent my poly pipe from kinking during installation?
A: Use a larger diameter well seal or guide to feed the pipe into the casing smoothly. Lower the pump slowly and evenly. Consider using a pipe straightener or unrolling the poly pipe a day before to let it relax in the sun. Never force a kink out under tension.
Q: What is the most common mistake during installation?
A: Two mistakes are prevalent: 1) Failing to secure the electrical cable properly to the drop pipe, leading to cable damage and short circuits. 2) Incorrect or non-waterproof electrical splices, which cause immediate failure or pose a serious shock hazard. Always use the proper submersible pump splice kits.
Q: My pump is running but delivering little water. What’s wrong?
A: This could indicate several issues: a leak in the drop pipe, a clogged intake screen or impeller, incorrect pump sizing for the well’s recovery rate, or a drop in the water table. Check surface connections first for leaks, then you may need to pull the pump to inspect the intake.
