Are you tired of skyrocketing electricity bills eating into your hydroponic garden's profits? Or perhaps you're looking for a sustainable way to grow fresh produce off the grid. Creating a solar powered water pump system for your hydroponics setup is not just an eco-friendly choice; it's a smart financial move that offers independence from traditional power sources.
Hydroponics relies heavily on consistent water circulation to deliver nutrients directly to plant roots. When the power goes out, your plants can suffer within hours. By harnessing the sun's energy, you ensure a reliable, green power source that keeps your nutrient solution flowing, even when the grid goes down. This guide will walk you through the components, calculations, and steps needed to build your own efficient solar water pump system.
Before we dive into the "how-to," let's look at the "why." Transitioning to a solar pump offers several distinct advantages for hydroponic growers:
Energy Independence: You are no longer reliant on the grid. If you live in an area with frequent outages, your plants remain safe.
Cost Savings: After the initial setup cost, the energy from the sun is free. This significantly reduces the operational costs of running pumps 24/7.
Sustainability: reducing your carbon footprint aligns with the ethos of growing your own food.
Flexibility: You can set up a hydroponic system in remote locations, such as the far corner of a large property or a dedicated greenhouse without electrical wiring.
1

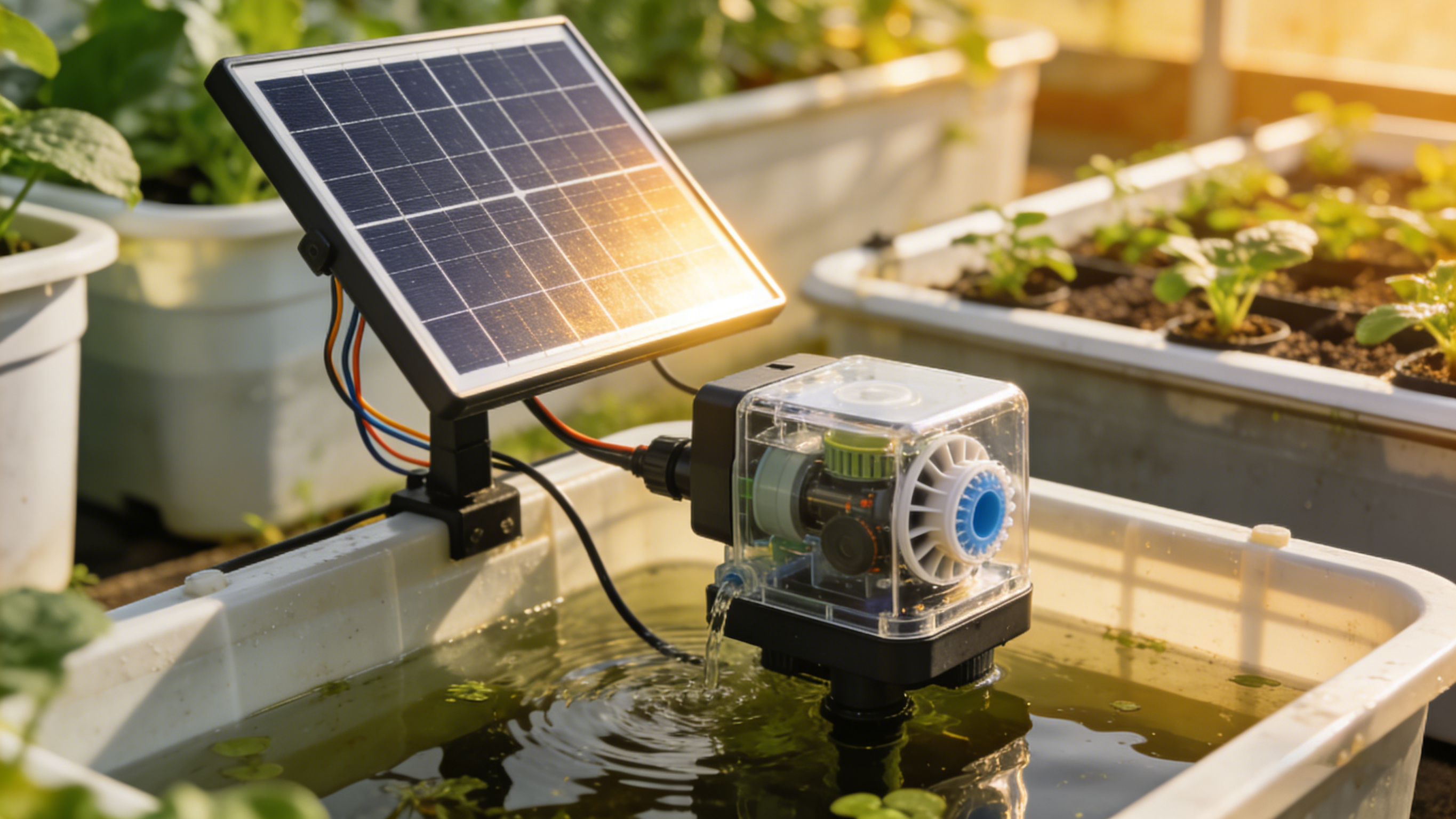

To build a functional solar powered water pump system, you need more than just a panel and a pump. Here is a breakdown of the core components you will need to gather.
For most hobbyist or small-scale commercial hydroponic systems, a DC (Direct Current) pump is more efficient than an AC pump because solar panels produce DC electricity. This eliminates the need for an inverter, which can cause energy loss.
When choosing a pump, consider the "head height" (how high it needs to lift water) and the flow rate (gallons per hour).
The solar panel collects sunlight and converts it into electricity. You need a panel that matches or slightly exceeds the voltage and wattage requirements of your pump.
This acts as a voltage regulator. It prevents the solar panel from overcharging your battery and prevents the battery from draining back into the solar panel at night.
While you can run a solar pump directly from a panel, it will stop working when a cloud passes over or the sun sets. For hydroponics, where roots need constant or intermittent moisture 24/7, a battery bank is essential to store energy for use at night or during cloudy weather.
You will need appropriate tubing to connect your pump to your hydroponic system, along with wiring to connect the electrical components.
To ensure your solar powered water pump runs continuously, you can't just guess the sizes. You need to match the power generation to your power consumption.
Check the label on your pump. Let's say you have a small 12V pump that draws 10 Watts.
If you run it 24 hours a day:
10 Watts x 24 hours = 240 Watt-hours (Wh) per day.
You generally have about 4 to 6 peak sun hours per day depending on your location. To generate 240 Wh in 5 hours, you need:
240 Wh / 5 hours = 48 Watts.
However, systems are not 100% efficient. It is wise to add a buffer of 25-30%.
48 Watts x 1.3 = ~62 Watts.
In this scenario, a 100W solar panel would be a safe choice to ensure the battery gets fully charged even on less-than-perfect days.
You need a battery that can supply 10 Watts for the hours the sun isn't shining (approx. 18 hours).
10 Watts x 18 hours = 180 Wh.
For a 12V battery system:
180 Wh / 12V = 15 Amp-hours (Ah).
Lead-acid batteries shouldn't be discharged below 50% to prolong their life, so you need double that capacity.
15 Ah x 2 = 30 Ah.
A 12V, 35Ah deep-cycle battery would be appropriate here.
Now that you have your numbers and components, here is how to put it all together.
Place your solar panel in an area with maximum sunlight exposure, typically facing south (in the Northern Hemisphere) and angled according to your latitude. Ensure no shadows from trees or buildings fall on it during peak hours.
Crucial Safety Tip: Always connect the battery to the charge controller before connecting the solar panel. This allows the controller to detect the system voltage (12V or 24V).
Connect the positive (+) battery wire to the positive battery terminal on the controller.
Connect the negative (-) battery wire to the negative battery terminal.
The controller display should turn on.
Connect the positive (+) solar wire to the PV+ terminal on the controller.
Connect the negative (-) solar wire to the PV- terminal on the controller.
If there is sunlight, the charging indicator on the controller should light up.
Connect your solar water pump to the "Load" terminals on the charge controller.
Positive pump wire to Load (+).
Negative pump wire to Load (-).
Most controllers have a button to turn the load ON or OFF manually, or you can program a timer if your hydroponic system (like an Ebb and Flow) only requires intermittent watering.
Submerge your pump into your nutrient reservoir. Connect the outlet tubing to your hydroponic grow tray or drip lines. Ensure the pump is secured and the intake isn't blocked by debris.
Even the best-planned systems can encounter hiccups. Here is a quick reference table for common problems with solar pumps in hydroponics.
Issue | Possible Cause | Solution |
|---|---|---|
Pump stops at night | Battery capacity is too small or old. | Upgrade to a larger Deep Cycle battery or test your current battery's health. |
Pump runs slowly | Voltage drop in wires or low sunlight. | Use thicker gauge wires for long distances; clean solar panels. |
Battery not charging | Loose connections or faulty controller. | Double-check all wiring terminals; ensure the panel is receiving full sun. |
Pump makes noise but no water | Air lock in the system. | Tilt the pump while submerged to release trapped air bubbles. |
Once you have the basics down, you can optimize your setup for better performance.
MPPT Controllers: Consider using an MPPT (Maximum Power Point Tracking) charge controller instead of a standard PWM controller. They are more expensive but can be up to 30% more efficient at harvesting energy from your panels.
DC Timers: If you don't need continuous flow, install a simple 12V DC timer between the load terminal and the pump to control watering cycles precisely.
Maintenance: Dust and pollen on solar panels can reduce efficiency by 15-25%. Wipe them down regularly with a damp cloth.
1
Building a solar powered water pump for hydroponics is a rewarding project that pays dividends in reliability and sustainability. It protects your crop from power failures and lowers your monthly overheads. By carefully sizing your components—panel, battery, and pump—you create a resilient ecosystem where technology and nature work in harmony.
Whether you are running a small backyard lettuce raft or a larger vertical farm, solar energy provides the autonomy every modern grower seeks. Start small, test your configuration, and soon you'll be enjoying the fruits (and vegetables) of your labor, powered entirely by the sun.
