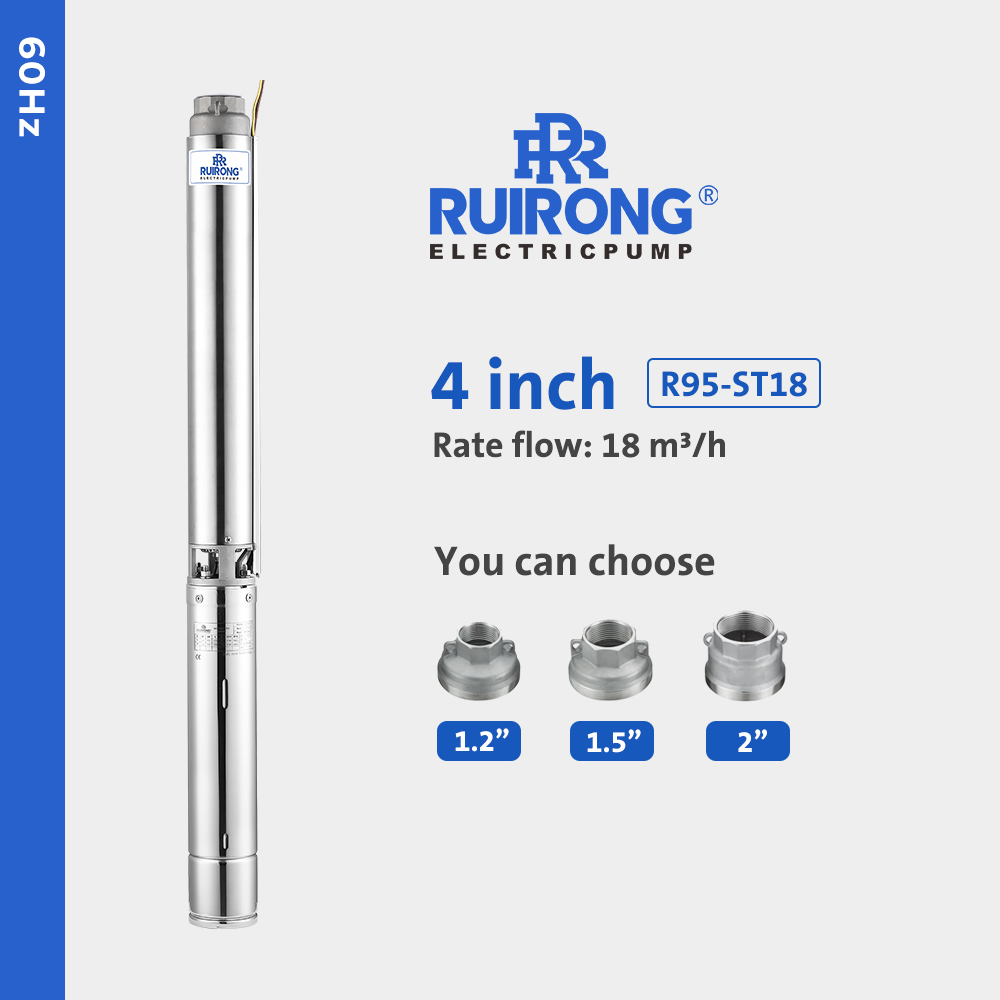

R95-ST18
RUIRONG
1. Utilize a robust stainless steel 304 pump tube with a thickness of 1.5mm, complemented by a stainless steel 304 diffuser and a durable stainless steel 304/316 pump head. This combination ensures high strength, aesthetic appeal, and long-lasting durability.
2. The innovative design of the multi-stage floating impeller significantly lowers the starting torque requirements and prevents blockages caused by small sand particles. This sand-resistant capability extends the motor's service life, offering enhanced performance and reliability.
Model 60Hz | Motor Power | 3~ | 1~ | Q | Capacity | ||||||||||
| US.gpm | 0 | 42 | 58 | 74 | 90 | 100 | 111 | 122 | |||||||
| m3/h | 0 | 9.6 | 13.2 | 16.8 | 20.4 | 22.8 | 25.2 | 27.6 | |||||||
| 380V | 220V | L/min | 0 | 160 | 220 | 280 | 340 | 380 | 420 | 460 | |||||
| HP | kW | A | A | μF | VC | Total head in meters | |||||||||
| *R95-ST18-05 | 3 | 2.2 | 5.4 | 13.6 | 60 | 450 | H (m) | 44 | 36 | 32 | 28 | 23 | 19 | 14 | 1 |
| *R95-ST18-07 | 4 | 3 | 6.7 | - | - | - | 61 | 50 | 45 | 40 | 33 | 28 | 26 | 18 | |
| *R95-ST18-09 | 5 | 3.7 | - | 22.5 | 80 | 450 | 80 | 65 | 58 | 51 | 43 | 36 | 30 | 23 | |
| *R95-ST18-10 | 5.5 | 4 | 8.6 | - | - | - | 88 | 73 | 65 | 57 | 48 | 41 | 34 | 27 | |
| *R95-ST18-13 | 7.5 | 5.5 | 11.9 | - | - | - | 116 | 96 | 85 | 74 | 62 | 55 | 44 | 35 | |
| R95-ST18-14 | 7.5 | 5.5 | 15 | - | - | - | 126 | 104 | 93 | 80 | 67 | 62 | 48 | 38 | |
| *R95-ST18-17 | 10 | 7.5 | 15.8 | - | - | - | 153 | 126 | 113 | 97 | 81 | 75 | 58 | 46 | |
| R95-ST18-19 | 10 | 7.5 | 19.9 | - | - | - | 171 | 141 | 126 | 108 | 91 | 84 | 65 | 51 | |
Mark * indicates that the pump body load is configured according to the rated power.
