Installing a deep well pump might seem daunting, but with the right tools and a clear plan, it's a manageable DIY project. Whether you're replacing an old pump or setting up a new well system, understanding the process will save you time and money while ensuring a reliable water supply for your home.

This guide walks you through everything you need to know about installing a deep well pump, from gathering materials to testing your system. By the end, you'll have the confidence to tackle this project safely and effectively.

What is a Deep Well Pump?

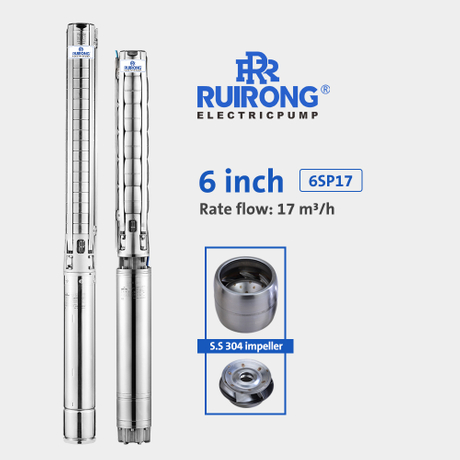

A deep well pump is a submersible pump designed to draw water from wells deeper than 25 feet. Unlike shallow well pumps that sit above ground, deep well pumps are installed directly in the well casing, where they push water up to the surface. They're powerful, efficient, and ideal for rural homes or properties without access to municipal water.

Tools and Materials You'll Need

Before you begin, gather the following:

· Deep well pump (sized appropriately for your well depth and water needs)

· PVC or polyethylene pipe (to connect the pump to the surface)

· Wire and wire connectors (for electrical connections)

· Torque arrestor (to prevent the pump from spinning)

· Safety rope (to lower the pump into the well)

· Pressure tank (to regulate water pressure)

· Pressure switch (to turn the pump on and off)

· Check valve (to prevent backflow)

· Pitless adapter (for a sanitary connection below the frost line)

· Wire strippers and electrical tape

· Wrenches and screwdrivers

· Hose clamps

Make sure you also have access to a sturdy tripod or lifting device if your well is particularly deep.

Step 1: Turn Off Power and Drain the System

Safety comes first. Before you do anything, shut off the power to your existing well pump at the circuit breaker. Then, open a faucet inside your home to drain any remaining water from the system. If you're replacing an old pump, you'll need to disconnect and remove it before proceeding.

Step 2: Measure Your Well Depth

Knowing your well's exact depth is crucial for positioning the pump correctly. Use a weighted tape measure or string to determine the distance from the top of the well to the water level, and then to the bottom. The pump should sit at least 10 to 20 feet below the water line to ensure it remains submerged even during dry spells.

Step 3: Attach the Pump to the Pipe

Connect your deep well pump to the drop pipe using the appropriate fittings. Make sure the connection is tight and secure. Attach a check valve above the pump to prevent water from flowing back down the pipe when the pump shuts off. This protects the pump from unnecessary wear and maintains consistent pressure.

Next, install a torque arrestor. This device clamps onto the pipe and prevents the pump motor from spinning inside the well casing, which can damage both the pump and the well.

Step 4: Connect the Electrical Wiring

Your pump will come with a power cable that needs to be connected to a control box or directly to your home's electrical system. Strip the wire ends and attach them to the corresponding wires in the control box using wire connectors. Secure the connections with electrical tape.

Use hose clamps or cable ties to fasten the electrical wire to the drop pipe every few feet. This keeps the wire from snagging or tangling as you lower the pump into the well.

Step 5: Attach the Safety Rope

Even though the pipe supports the pump's weight, a safety rope provides an extra layer of security. Tie a strong nylon rope to the pump's lifting eye, then secure it to the top of the well casing. This rope will also make it easier to retrieve the pump if you ever need to pull it out for maintenance.

Step 6: Lower the Pump into the Well

This is the most physically demanding part of the process. Carefully lower the pump into the well, feeding the pipe, wire, and safety rope down simultaneously. Go slowly to avoid kinking the pipe or damaging the wire. If your well is very deep, consider using a tripod or asking a friend to help.

Once the pump reaches the desired depth, secure the pipe at the top of the well using a well seal or pitless adapter. The pitless adapter connects the drop pipe to your home's water line below the frost line, ensuring the system stays protected year-round.

Step 7: Install the Pressure Tank and Switch

Above ground, connect the pipe from the well to a pressure tank. The pressure tank stores water and maintains consistent pressure throughout your plumbing system. Attach a pressure switch to the tank, which will automatically turn the pump on when pressure drops and off when it reaches the set level.

Follow the manufacturer's instructions for setting the pressure switch. Most residential systems operate between 30 and 50 PSI, but your needs may vary depending on your home's size and water usage.

Step 8: Prime the System (If Necessary)

Some deep well pumps are self-priming, while others require manual priming. Check your pump's manual for specific instructions. If priming is needed, fill the drop pipe with water before turning on the pump. This removes air from the system and allows the pump to start efficiently.

Step 9: Restore Power and Test

Turn the power back on at the circuit breaker. Listen for the pump to start, and check for water flow at your faucets. It may take a few moments for water to reach the surface, especially if your well is deep. Monitor the pressure gauge on the tank to ensure it's reaching the correct PSI.

Inspect all connections for leaks, both at the wellhead and around the pressure tank. Tighten any fittings if necessary.

Step 10: Monitor Performance

Over the next few days, keep an eye on your system. Make sure the pump cycles on and off as expected, and that water pressure remains steady. If you notice any issues—such as the pump running continuously or fluctuating pressure—double-check your connections and settings.

Common Mistakes to Avoid

· Installing the pump too shallow: If the water level drops, the pump may run dry and overheat.

· Skipping the check valve: Without it, water flows back into the well, causing the pump to cycle more frequently.

· Undersizing the pump: Choose a pump that matches your well's depth and your household's water demand.

· Ignoring electrical codes: Always follow local electrical codes and consider hiring a licensed electrician if you're unsure.

Ready to Get Started?

Installing a deep well pump takes patience and attention to detail, but the result is a reliable water system that can last for years. By following these steps and taking the time to do the job right, you'll ensure your home has a steady supply of clean, fresh water.

If you're uncomfortable with any part of the process—especially the electrical work—don't hesitate to call a professional. It's better to invest in expert help than risk injury or damage to your equipment.
