Clean water is essential for everything from agriculture to daily household needs. However, accessing it in remote or off-grid locations can be a significant challenge. Traditional electric pumps often rely on an unstable grid or expensive diesel generators. A solar DC pump offers a reliable, cost-effective, and environmentally friendly solution to this problem.
This guide will explain exactly what a solar DC pump is, how it operates, and its key components. We will also explore its different types, benefits, and common applications. By the end, you will understand how this technology harnesses the sun's energy to provide a consistent water supply wherever it's needed.

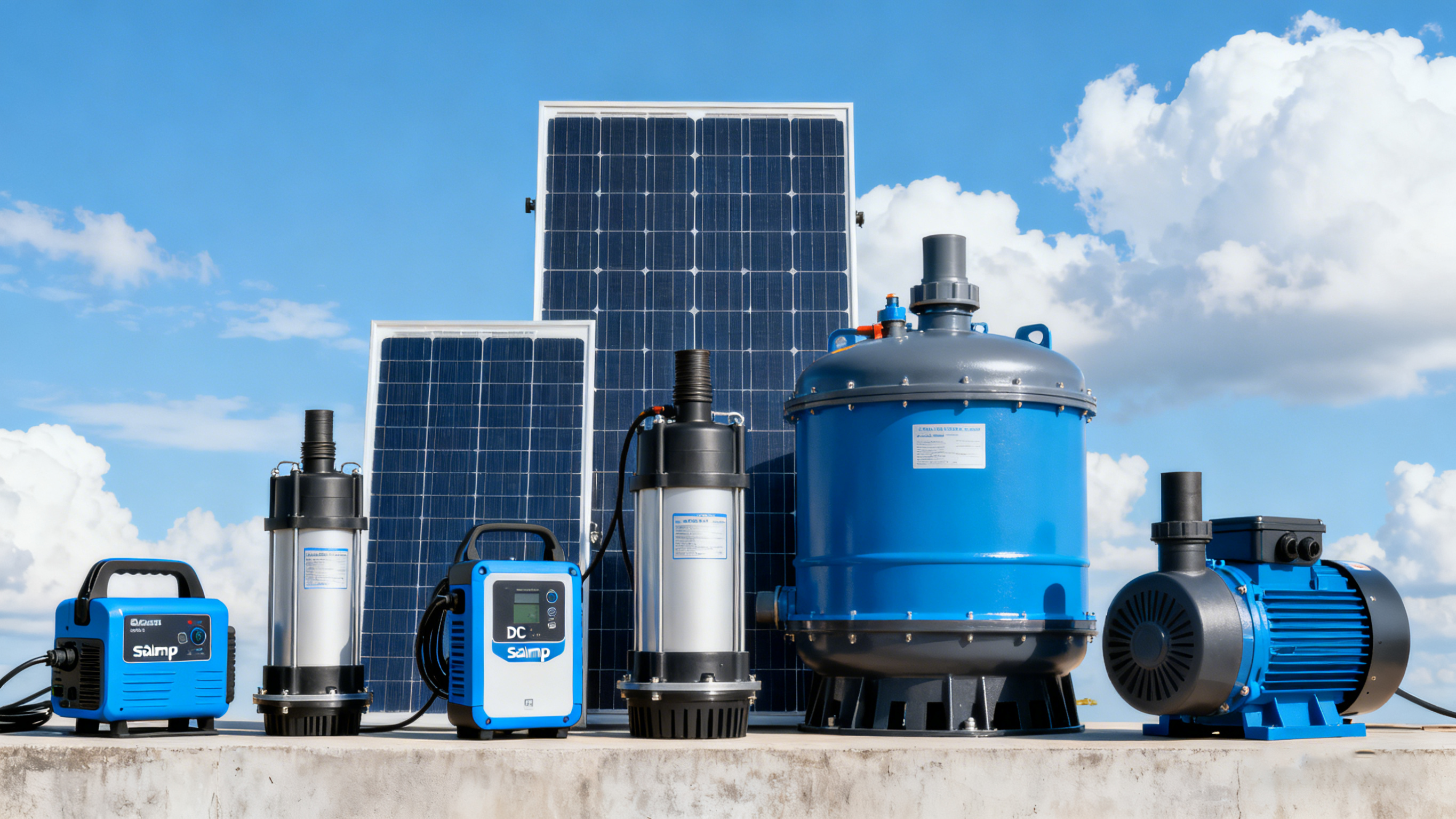

A solar DC pump is a water pump that operates on direct current (DC) electricity generated by solar panels. Unlike standard AC (alternating current) pumps that require power from the electrical grid or a generator, a solar DC pump system is designed to be self-sufficient. This makes it an ideal choice for areas where electricity is unreliable, unavailable, or expensive.
The core principle is simple: photovoltaic (PV) solar panels capture sunlight and convert it into DC electrical energy. This power is then sent directly to the DC motor of the pump, which drives the mechanism to move water. Because the system runs on DC power from start to finish, it is highly efficient and eliminates the need for complex and costly inverters that convert DC to AC.
A typical solar DC pump system consists of four main parts that work together to pump water using sunlight.
The solar panels, also known as a photovoltaic (PV) array, are the power source of the system. They are made up of multiple solar cells that absorb sunlight and generate DC electricity. The size and number of panels required depend on several factors, including the pump's power rating, the amount of water needed, the local climate, and the total dynamic head (the vertical distance the water needs to be lifted).
The pump controller is the brain of the system. This electronic device is installed between the solar panels and the pump. Its primary functions are:
· Power Regulation: It regulates the voltage and current coming from the solar panels to match the pump's requirements, ensuring the motor runs efficiently and is protected from power surges.
· Maximum Power Point Tracking (MPPT): Most modern controllers use MPPT technology. This feature continuously adjusts the electrical operating point of the panels to extract the maximum possible power, even as sunlight conditions change throughout the day. This can boost the pump's output by up to 30%.
· Dry-Run Protection: The controller can detect when the water source (like a well or pond) is empty and will automatically shut off the pump to prevent damage to the motor.
This is the heart of the system. It consists of a DC motor connected to a pump. The motor receives DC power from the controller and converts it into mechanical energy to operate the pump. The pump itself is what moves the water. There are different types of pumps used in these systems, which we will cover in the next section.
While a solar DC pump can supply water directly when the sun is shining, adding a water storage tank provides a more reliable system. The pump can fill a large tank during sunny periods, and this stored water can then be accessed at night, on cloudy days, or whenever needed, using gravity. This is often more cost-effective and simpler than using a battery bank to store electricity.
The operation of a solar DC pump is straightforward and follows a clear sequence:
1.Sunlight Collection: Solar panels absorb photons from sunlight, which excites electrons within the solar cells, creating a flow of DC electricity.
2.Power Management: The DC electricity flows to the pump controller. The controller optimizes this power using MPPT and ensures the pump receives the correct voltage and current.
3.Motor Activation: The regulated DC power energizes the pump's motor, causing it to spin.
4.Water Pumping: The spinning motor drives the pump mechanism (such as an impeller or diaphragm), which draws water from the source (e.g., well, river, bore) and pushes it through pipes to its destination, like a storage tank or irrigation system.
5.System Monitoring: The controller continuously monitors the system for issues like low water levels or voltage fluctuations, protecting the pump from damage.
Solar DC pumps come in two main varieties, each suited for different applications and water sources.
As the name suggests, submersible pumps are designed to be fully submerged in the water source. They are ideal for deep wells, boreholes, and reservoirs. These pumps push water up to the surface. Submersible pumps are further categorized into:
· Centrifugal Pumps: These use a rotating impeller to force water out. They are best for shallower wells (less than 100 feet) and can move high volumes of water at lower pressure.
· Helical Rotor Pumps (or Screw Pumps): These use a corkscrew-shaped rotor to move water. They are highly efficient for deep wells (over 100 feet) and can generate high pressure, but typically deliver a lower flow rate.
Surface pumps are installed on land, out of the water. They work by pulling water from a source through an intake pipe. These pumps are best for shallow water sources like ponds, rivers, streams, and storage tanks where the water level is no more than 20 feet below the pump. They are commonly used for irrigation, livestock watering, and moving water between tanks.
The advantages of installing a solar DC pump are significant, especially for agricultural and off-grid applications.
· Low Operating Costs: After the initial investment, the energy source—sunlight—is free. This eliminates ongoing electricity bills or the cost of diesel fuel.
· High Reliability and Low Maintenance: Solar DC pumps have fewer moving parts than traditional pumps and no complex inverters. This makes them highly reliable and reduces maintenance needs.
· Environmentally Friendly: The system produces no greenhouse gas emissions, making it a clean and sustainable solution for water management.
· Energy Independence: By operating off the grid, you are no longer dependent on an unreliable power supply or volatile fuel prices.
· Simple Installation: Solar pump systems are relatively easy to install compared to extending grid power to remote locations.
A solar DC pump is an efficient, dependable, and green technology that provides a powerful solution for water challenges across the globe. By directly using DC power from solar panels, these systems minimize energy loss and complexity, offering a cost-effective way to supply water for farms, livestock, homes, and communities. Whether you need to irrigate crops in a remote field or provide drinking water for an off-grid cabin, a solar DC pump is a smart investment in a sustainable future.
