Quick answer:
A submersible pump is a mechanical device featuring a hermetically sealed motor close-coupled to the pump body. The submersible pump works by pushing fluid to the surface rather than pulling it. Industrial submersible pumps rely on robust mechanical seals and oil chambers to prevent water ingress during submerged operations.
Industrial facilities constantly face the challenge of moving massive volumes of water, sludge, or chemicals efficiently. Traditional surface pumps often struggle with lift limitations and cavitation, which can halt operations entirely. You need a reliable solution that operates directly at the source of the fluid, eliminating suction difficulties and reducing energy waste.
A submersible pump solves these extraction challenges by operating completely underwater. Because the equipment sits below the fluid level, it requires less energy to move liquids to the surface. This design also cools the motor naturally and operates quietly, making it highly efficient for demanding industrial environments.
This guide will break down the submersible pump working principle, examine its core components, and highlight the most common industrial applications. By understanding how these heavy-duty machines function, facility managers and procurement teams can make confident purchasing decisions that improve operational efficiency.
Table of Contents
When you examine a cross-sectional diagram of a submersible pump, the integration of the motor and the pump body becomes immediately clear. The unit consists of a fully enclosed electric motor directly coupled to a pump casing that houses the impeller. This close-coupled structure allows the entire machine to be submerged in the fluid it needs to move.
Because the motor is hermetically sealed, water cannot reach the electrical components. The surrounding fluid actually acts as a natural cooling agent for the motor, preventing overheating during continuous industrial operations.
The sealing system is the most critical protective barrier in any submersible pump. If fluid breaches the motor casing, the entire unit will fail. To prevent this, industrial submersible pumps utilize a sophisticated dual-seal arrangement.
The system typically features a mechanical seal and a dedicated oil chamber. The mechanical seal prevents the pumped liquid from entering the motor shaft area. Meanwhile, the oil chamber sits between the pump and the motor. This chamber lubricates the mechanical seal and acts as a secondary barrier. If the primary seal experiences wear, the oil chamber catches any moisture before it can reach the electrical components.
The submersible pump working principle relies on centrifugal force. When electrical current flows into the submerged motor, the motor spins the shaft connected to the impeller. As the impeller blades rotate at high speeds, they draw fluid in through the intake screen.
The kinetic energy from the spinning impeller pushes the fluid outward, accelerating it into the diffuser or volute casing. This casing converts the fluid's velocity into pressure, forcing the water up through the discharge pipe to the surface. Rather than fighting gravity by pulling water up, the pump efficiently pushes the fluid from below.
Agricultural operations and municipal water systems rely heavily on deep well submersible pumps. These narrow, cylindrical pumps fit easily into drilled boreholes. The pumps efficiently push clean groundwater from deep aquifers up to surface storage tanks or irrigation systems.
Sewage and wastewater management facilities require pumps that can handle solid waste without clogging. A sewage submersible pump often features a specialized vortex impeller or a grinder mechanism. This design allows the pump to chop up debris and push heavy sludge through municipal pipelines safely.
Mining operations frequently encounter groundwater flooding in underground shafts. Industrial submersible pumps designed for mining drainage feature highly durable, abrasion-resistant materials. These heavy-duty pumps continuously remove abrasive, mineral-heavy water to keep mining sites dry and safe for workers.
Large-scale fish farms and marine aquaculture facilities need constant water circulation to maintain oxygen levels. Submersible pumps transfer massive volumes of seawater or freshwater continuously. To survive the highly corrosive saltwater environment, these specific pumps utilize high-grade stainless steel components.

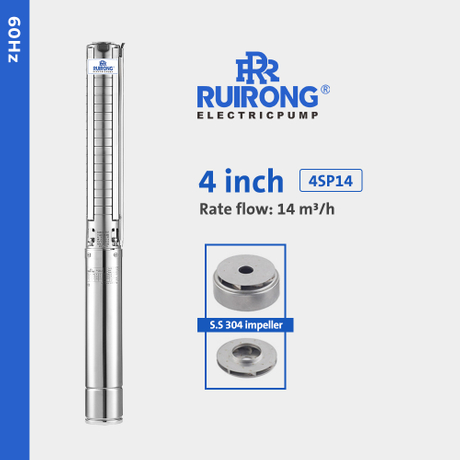

For over 33 years, Guangdong Ruirong Pump Industry Co., Ltd. has operated as a leading industrial pump manufacturer. When examining a case model for superior design, the Ruirong 3SP, 4SP, 5SP, 6SP, and 8SP series stainless steel submersible pumps stand out.
The Ruirong 3SP to 8SP series features full stainless steel construction, which provides exceptional resistance to corrosion and wear. This material choice is especially valuable for well water extraction and marine environments where rust causes premature equipment failure.
Ruirong Pump integrates precision-engineered mechanical seals and high-efficiency impellers into these series. This integration ensures the pumps deliver consistent water pressure while minimizing energy consumption. By choosing a trusted manufacturer like Ruirong Pump, industrial buyers secure equipment that requires less maintenance and offers a longer operational lifespan. You can view the full technical specifications of these series at https://www.ruirongpump.com.
Understanding the mechanics of a submersible pump helps industrial buyers match the right equipment to their specific fluid management challenges. By prioritizing features like robust mechanical seals, enclosed oil chambers, and corrosion-resistant materials, facilities can reduce downtime and lower long-term maintenance costs.
Evaluate your current water extraction or drainage needs today. Compare your flow rate and depth requirements against high-quality models like the Ruirong stainless steel series to find the most efficient pumping solution for your site.
A high-quality industrial submersible pump typically lasts between 10 and 15 years. The lifespan depends heavily on the operating environment, the abrasiveness of the pumped fluid, and how strictly the facility follows routine maintenance schedules for the mechanical seals.
The primary alternative to a submersible pump is a surface-mounted centrifugal pump. Choose a surface pump if your fluid source is shallow and you need easy access for daily maintenance. Choose a submersible pump if you are dealing with deep wells, require quiet operation, or want to completely eliminate suction lift issues.
Facility managers operating in highly corrosive environments should invest in full stainless steel submersible pumps. These pumps are specifically required for marine aquaculture, chemical processing plants, and geographic regions with highly acidic or mineral-heavy groundwater.
The cost of an industrial submersible pump ranges from $500 for smaller agricultural models to over $10,000 for heavy-duty, large-scale mining drainage pumps. The final price depends on the pump's horsepower, construction materials, and maximum flow rate capacity.
