Access to a reliable water supply is the lifeblood of any agricultural operation or remote community. For decades, farmers and landowners relied on noisy, fuel-guzzling diesel generators or grid electricity that wasn't always available. But as solar technology becomes more efficient and affordable, the landscape of water extraction is changing. A well-designed solar water pump system offers a solution that is both cost-effective and environmentally friendly.
Harnessing the sun to move water might sound simple, but creating a system that works efficiently requires careful planning. You cannot simply plug a pump into a solar panel and hope for the best. The physics of water pressure, the variability of sunlight, and the specific needs of your land all play a role in the design process. If you get the math wrong, you might end up with a trickle of water when you need a stream.
Designing a robust system involves understanding the relationship between the power source, the controller, and the pump mechanics. Whether you are irrigating crops, watering livestock, or providing potable water for a home, the principles remain the same. This guide breaks down the essential questions you need to answer to build a system that delivers water reliability for years to come.

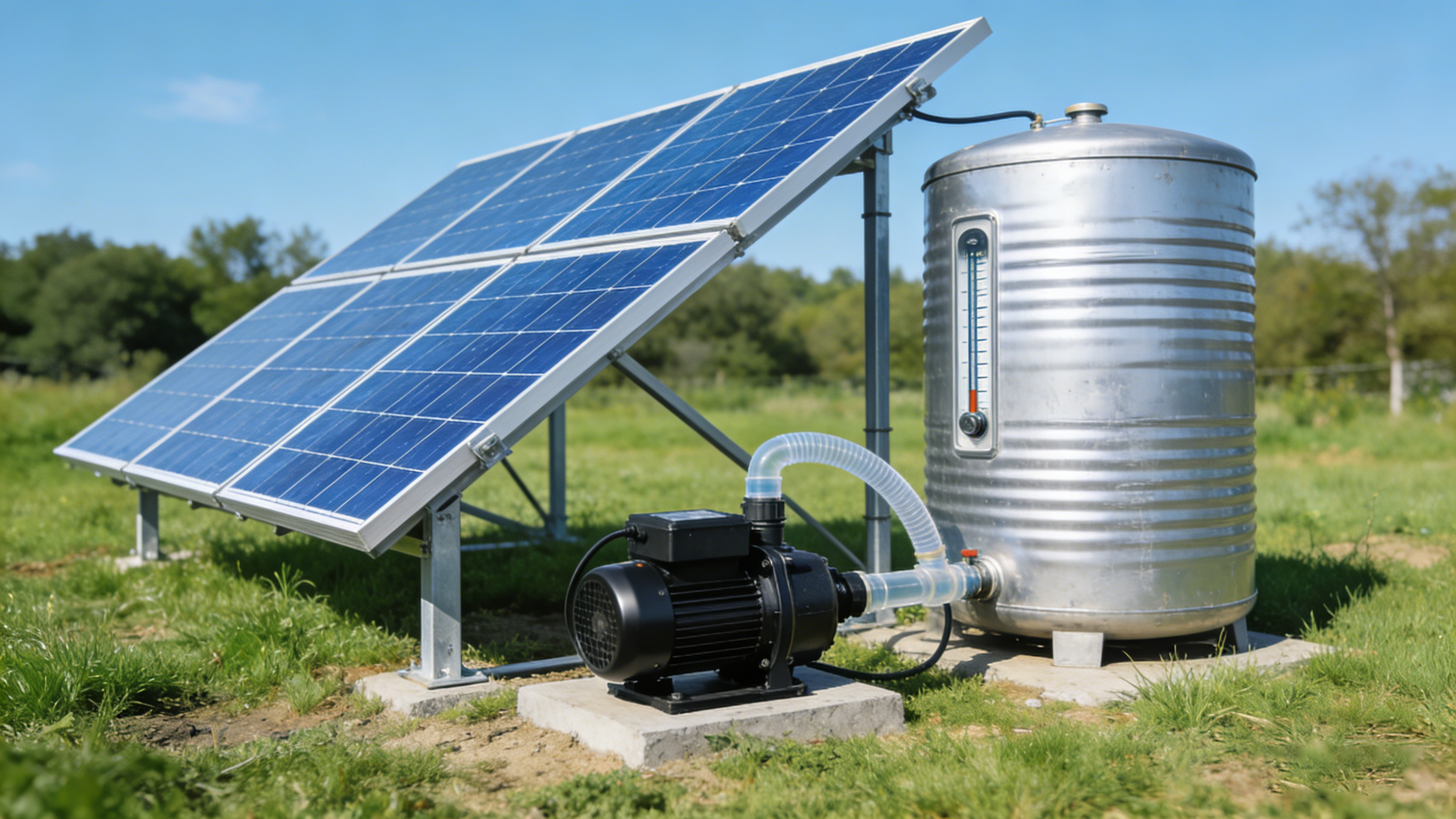

Before diving into the calculations, it is essential to understand what you are building. A solar water pump system is not just a single machine; it is a synchronized setup of three to four main components.
The Solar Array: These are the photovoltaic (PV) panels that convert sunlight into direct current (DC) electricity.
The Controller/Inverter: This is the brain of the operation. It regulates the power coming from the panels and optimizes it for the pump. High-quality controllers, like those offered by Guangdong Ruirong Pump Industry Co., Ltd., often feature Maximum Power Point Tracking (MPPT) to ensure the pump runs efficiently even on cloudy days.
The Pump: This is the workhorse. It can be a surface pump (for lakes and rivers) or a submersible pump (for deep wells/boreholes).
Storage (Optional): Instead of batteries, most agricultural systems use a water tank to store energy in the form of water. It is cheaper and more reliable to pump water into a tank when the sun is shining than to store electricity in batteries for pumping at night.
1
Many landowners hesitate to switch because they are accustomed to the "on-demand" power of diesel. However, when you look at the operational realities, solar wins on almost every front regarding long-term ownership.
Here is a quick comparison to highlight why designing a solar system is a smart investment:
Feature | Solar Water Pump System | Diesel Generator Pump |
|---|---|---|
Fuel Cost | Zero (Free Sunlight) | High and Fluctuating |
Maintenance | Low (Minimal moving parts) | High (Oil changes, filters, repairs) |
Lifespan | Long (Panels last 25+ years) | Short to Medium |
Noise Level | Silent | Loud |
Operation | Automatic (Sunlight activation) | Manual start required |
Pollution | None | Exhaust fumes and potential fuel spills |
The first step in your design isn't selecting a pump; it is determining your demand. You must calculate the volume of water required per day. This number dictates the size of every other component in the system.
If you are watering livestock, the math is relatively straightforward. For example, a single cow might need 15 to 20 gallons per day. If you have 50 cows, you need a system capable of delivering 1,000 gallons daily.
For irrigation, the calculation depends on the crop type, soil conditions, and acreage. If you underestimate this number, your crops will stress during peak summer heat. If you overestimate, you spend unnecessary money on oversized equipment. Always calculate for the "worst-case scenario"—the hottest, driest month of the year.
Once you know how much water you need, you must determine how hard the pump has to work to move it. This is called the Total Dynamic Head (TDH). In simple terms, TDH is the total vertical distance the water must travel plus the resistance caused by friction in the pipes.
To calculate TDH, you need to answer three questions:
What is the Static Water Level? The distance from the ground surface down to the water in the well.
What is the Drawdown? When you start pumping, the water level in the well drops. You need to account for this lower level.
What is the Vertical Lift? The distance from the surface of the ground to the top of your storage tank.
If your TDH is high (deep wells), you need a multi-stage submersible pump. Ruirong Pump Industry, for example, specializes in stainless steel deep well pumps that are engineered specifically to handle high-head applications without losing pressure.
With your water volume and TDH figures in hand, you can select the pump hardware. This is where quality manufacturing counts.
For deep wells, a submersible pump is the standard. You should look for pumps constructed from durable materials, such as 304 or 316L stainless steel, which resist corrosion and sand damage. Ruirong’s submersible pumps utilize encapsulated motors and advanced hydraulic designs to maximize efficiency.
The controller must be matched to the pump’s voltage and amperage requirements. A good controller does more than just pass power; it protects the pump. It prevents the pump from running dry (which destroys the motor), protects against voltage spikes, and shuts the system down if the tank is full.
The final piece of the design puzzle is sizing the solar array. You cannot simply match the panel wattage to the pump horsepower 1:1. You need "headroom."
Solar panels rarely produce their rated power output because of heat, dust, and the angle of the sun. A general rule of thumb for designing a solar water pump system is to oversize the solar array by 20% to 50% depending on your location.
If you have a 1kW pump, you might design an array capable of generating 1.3kW or 1.5kW. This ensures the pump starts earlier in the morning and runs later in the afternoon, maximizing the volume of water moved per day.
Even the best-designed system requires maintenance, but smart product choices can minimize the workload. In remote areas, pulling a pump out of a deep borehole is expensive and labor-intensive.
You should prioritize pumps designed for longevity. Features like floating impellers help handle sandy water without locking up. Ruirong Pump utilizes a modular design in their stainless steel submersible motors and pumps. This makes them easier to service and ensures that components like the mechanical seals are robust enough to last for years, reducing the total cost of ownership.
Designing a solar water pump system is an investment in reliability. By carefully calculating your water needs, understanding your well's characteristics, and oversizing your power supply, you can build a system that turns sunlight into a steady stream of water. It frees you from the volatility of fuel prices and the limitations of the power grid.
However, a design is only as good as the equipment you choose. For over 30 years, Guangdong Ruirong Pump Industry Co., Ltd. has been a global leader in manufacturing stainless steel submersible pumps and motors. With products serving over 120 countries and a reputation for high-tech innovation, Ruirong offers the specific hardware needed to bring your solar water design to life.
Whether you need a 4-inch deep well pump for a farm or a heavy-duty solution for industrial water transfer, choosing the right partner ensures your water flows when you need it most.
